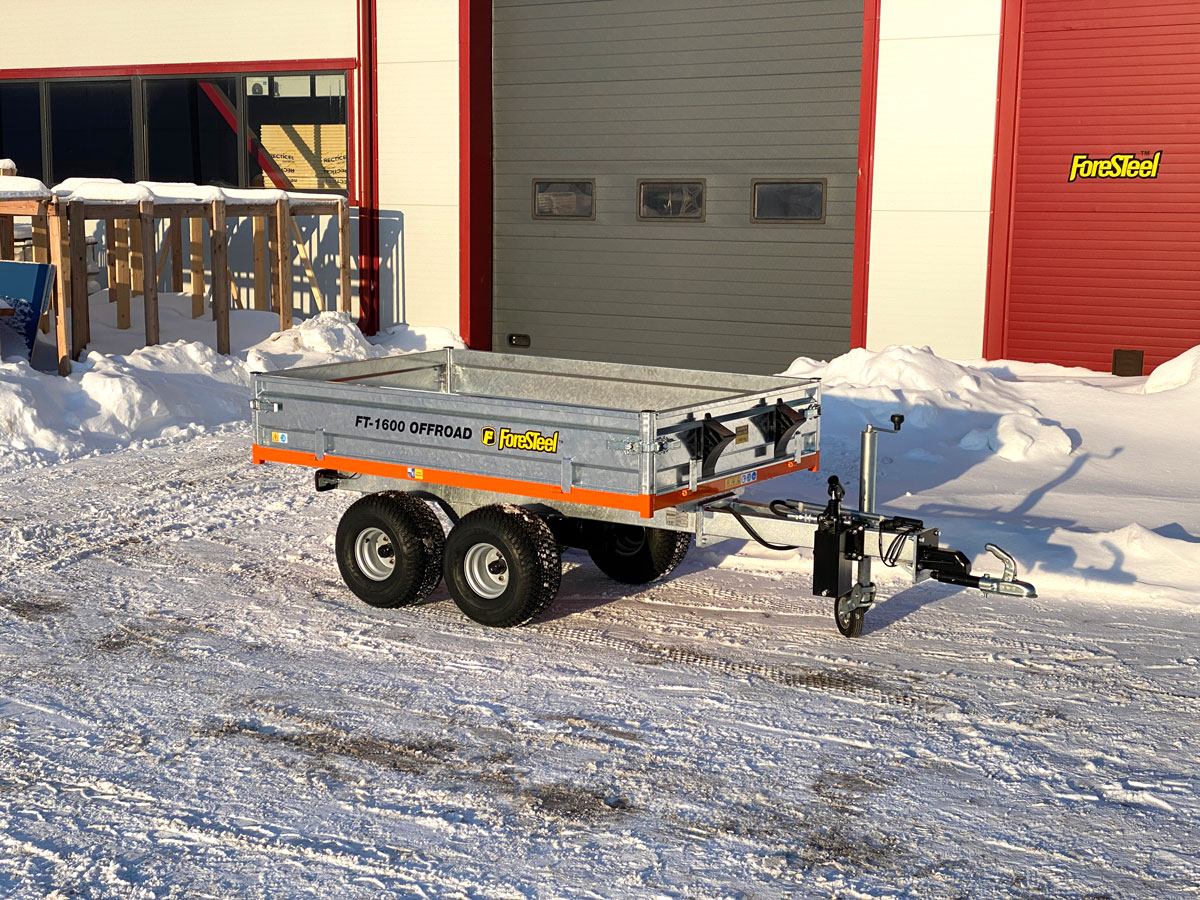

Trailer FT-1600 OFFROAD from Foresteel

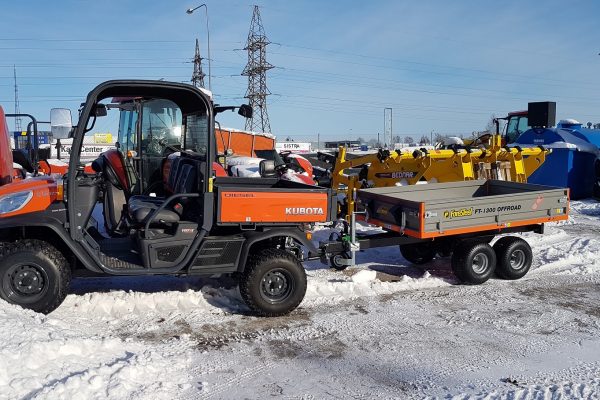

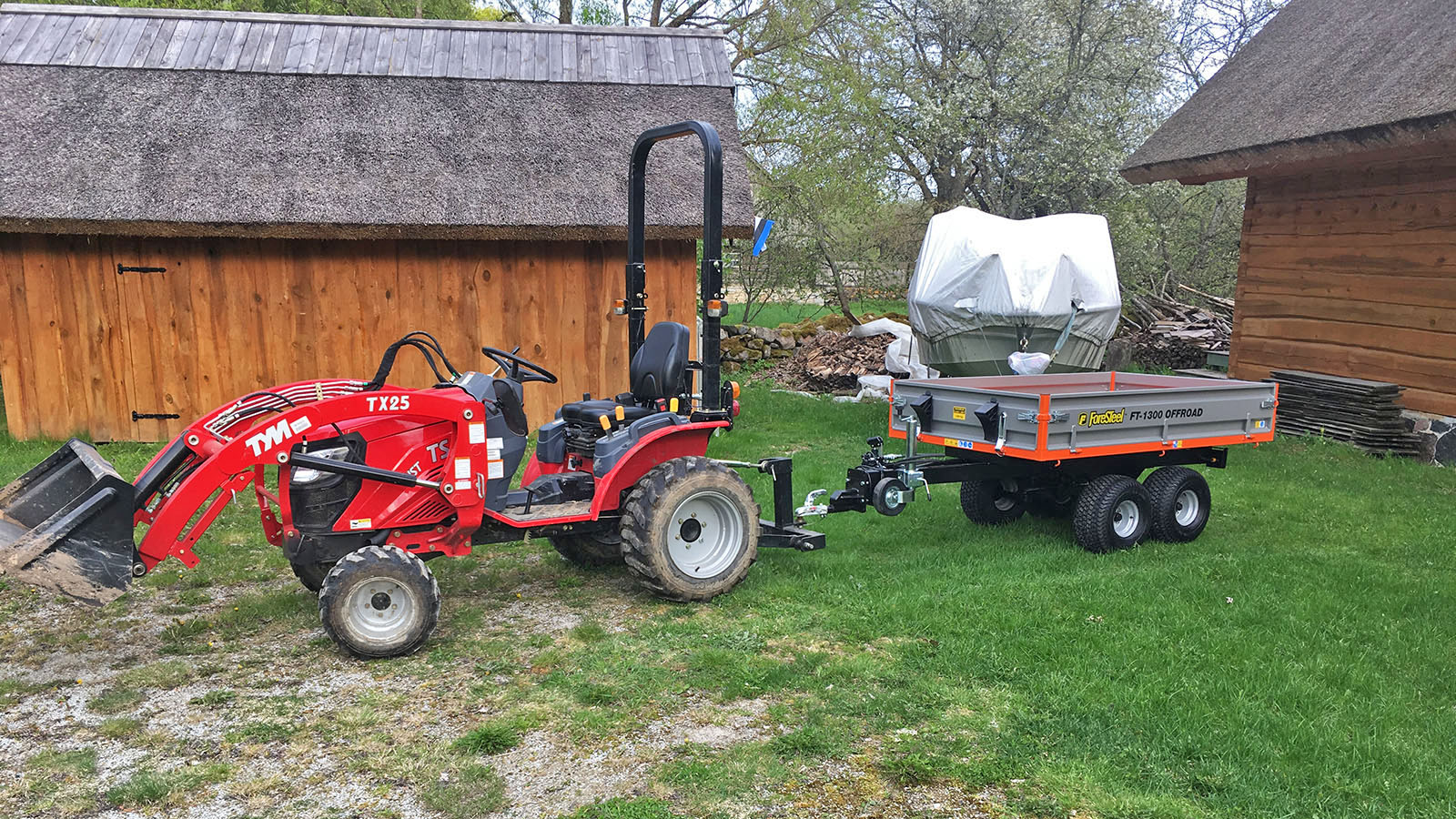

Tractors, loaders, ATVs, and UTVs can all be loaded with this heavy duty compact bogie axle hydraulic tipping trailer.
FT-1600 OFFROAD Benefits
Technical data
| Trailer size | FT-1600 OFFROAD |
|---|---|
| Loading capacity | 1600 kg |
| NET weight | 380 kg |
| Inside dimensions | 2000 mm x 1250 mm x 300 mm (without extensions) |
| Volume | 0.75 m3 (without extensions) |
| Measurments | L 3300 mm x W 1360 mm |
| Platform thickness | 3 mm; high strength steel |

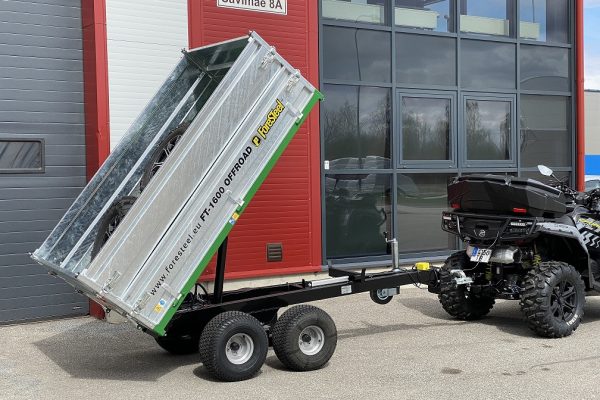

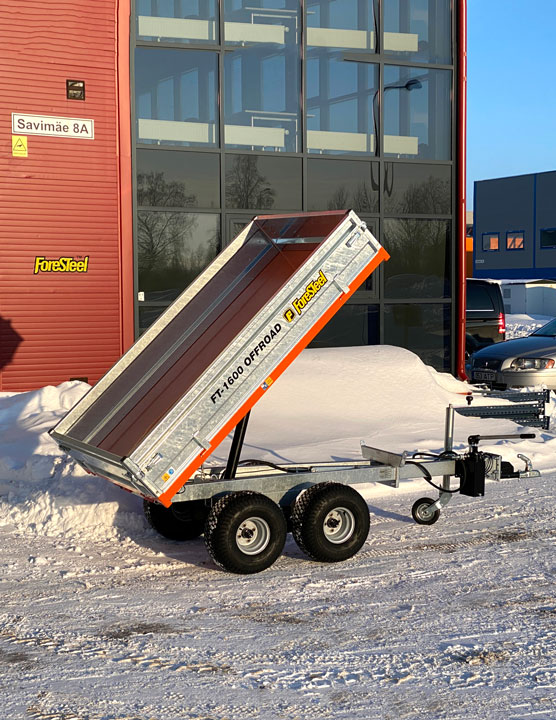

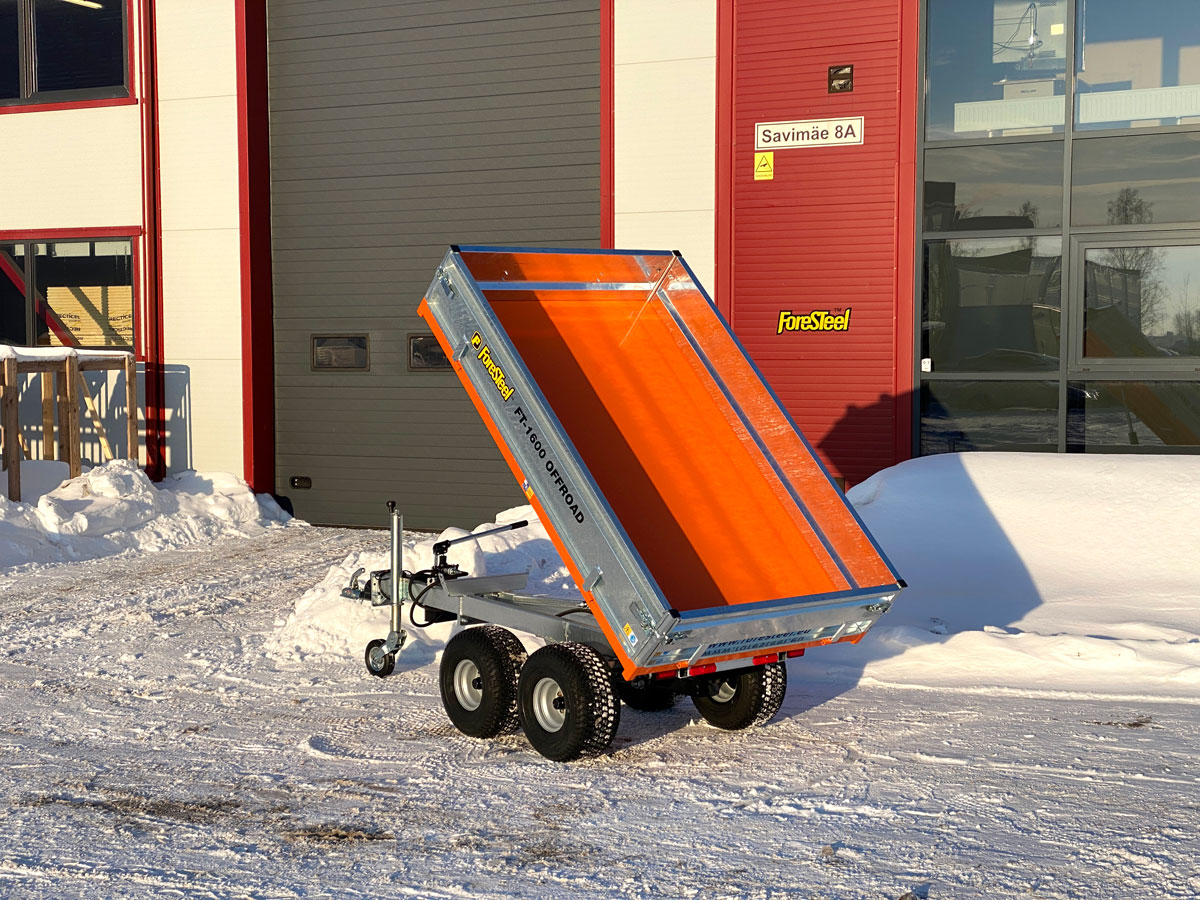

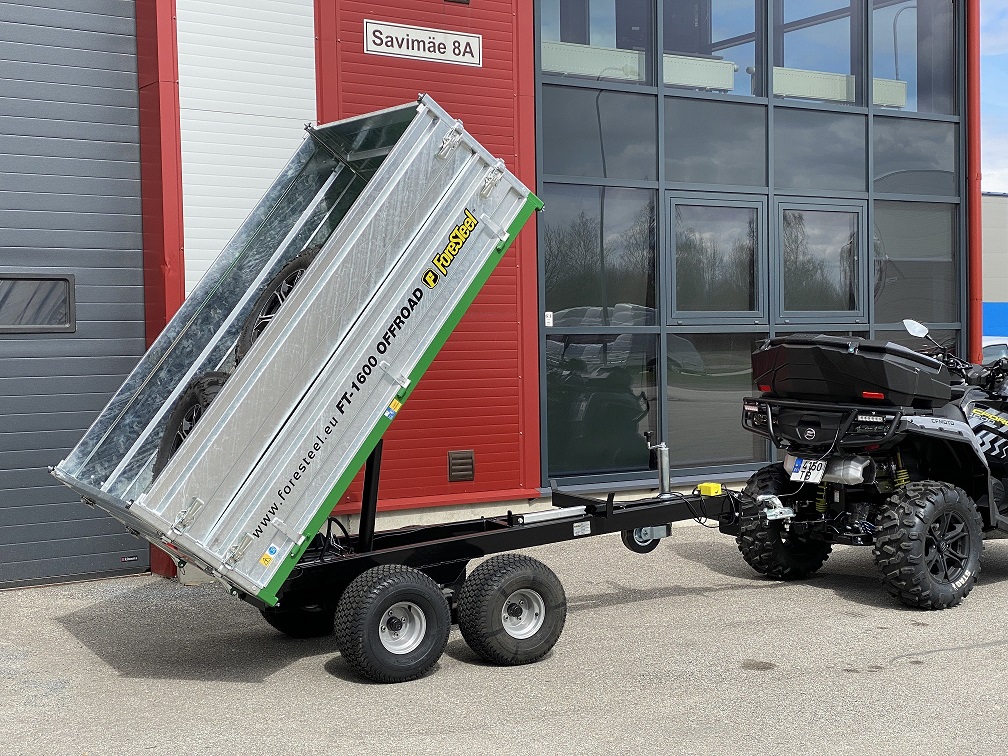

| Tipping | Rear, Hydraulic, 50 ° |
| Wheel size | 20” x 10” x 8” |
| Extras | 40 mm Towing eyelet (replaces standard coupling option) I NET extensions (Leaf extensions) 700 mm I Manual handpump tipping kit I Electro hydraulic tipping kit. Includes battery, charger, integrated battery level indicator, charging plug, wired remote |
| Delivery information | Delivered to door with tail lift truck. Packaged on pallet, with drawbar and wheels unassembled for transport. |
| 1600 OFFROAD COC Version | EU Type Approved/Street legal version with CoC papers |
Standard equipment
D50 mm ball coupling
Details
Adjustable coupling height (4 positions)
Details
Adjustable coupling height (4 positions)
Wide turf tires
Details
Wide turf tires
Greasable tip bearings
Details

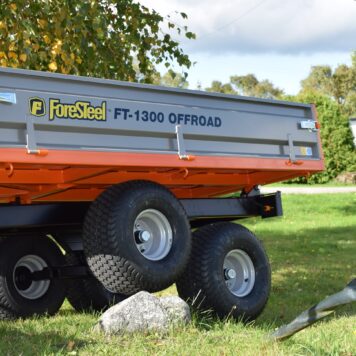

Heavy duty bogie axle
Details
Heavy duty bogie axle
Platform body with corner posts
Details
Platform body with corner posts

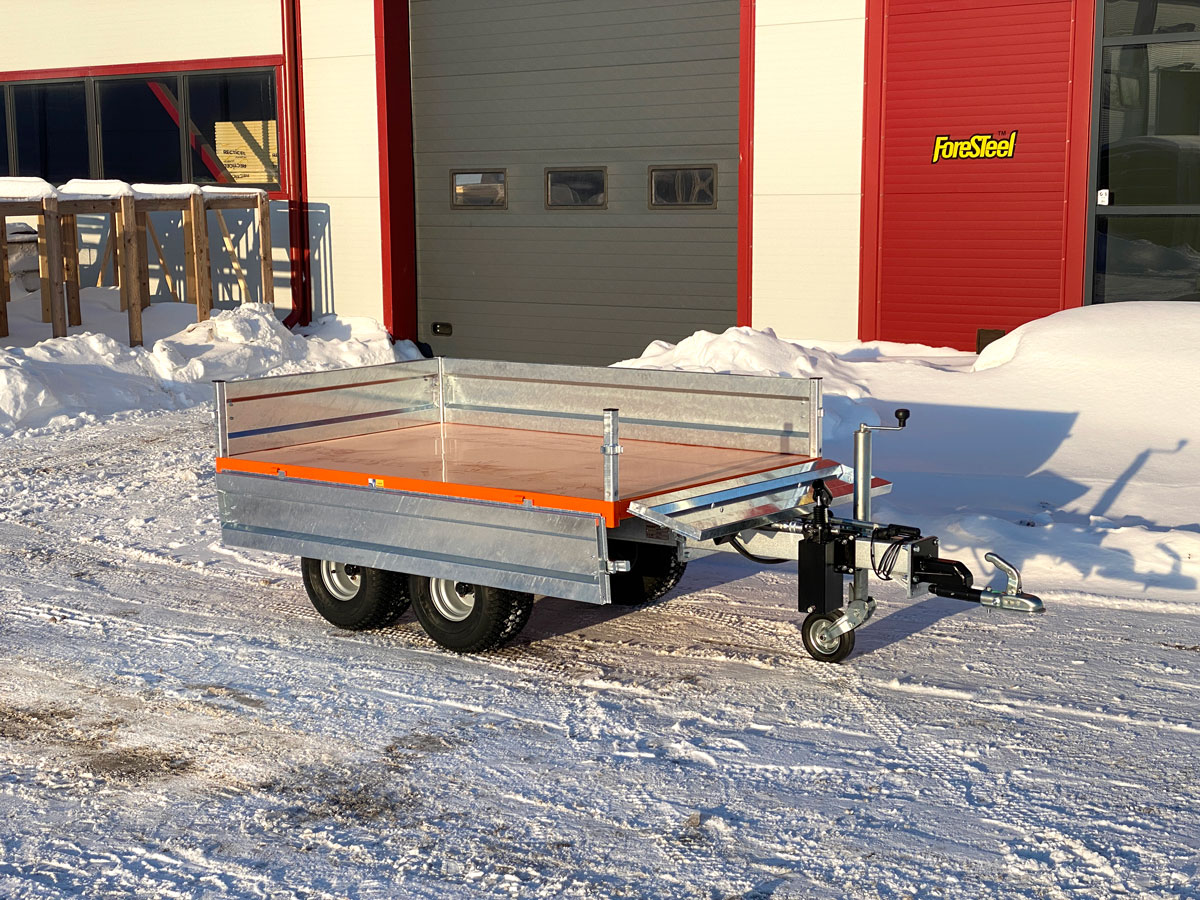

All side panels openable and removable
Details
All side panels openable and removable
Hydraulic tipping – hydraulic hose connection in standard
Details
Hydraulic tipping – hydraulic hose connection in standard
High quality finish in Foresteel orange or green
Details
High quality finish in Foresteel orange or green
Adjustable support wheel
Details
Adjustable support wheel
LED lights with rear triangle reflectors
Details
LED lights with rear triangle reflectors
Optional equipment
40 mm Towing eyelet

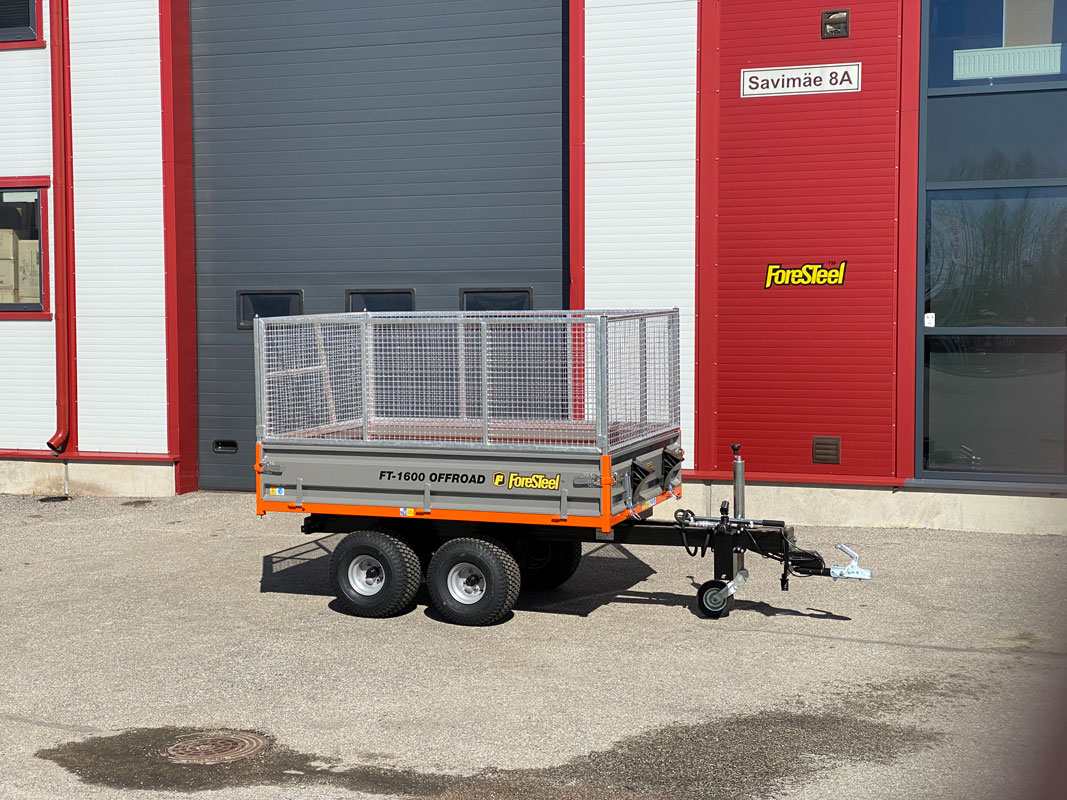

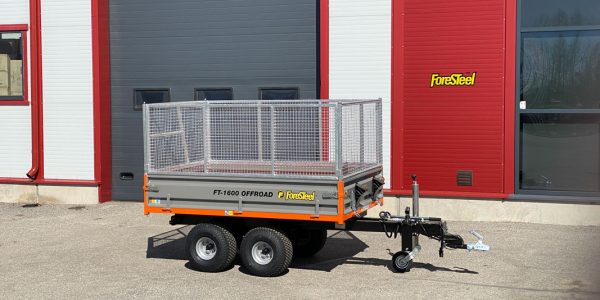

NET extensions 70 cm
Extra level side panels 30 cm
Manual handpump tipping kit
Electro hydraulic tipping kit

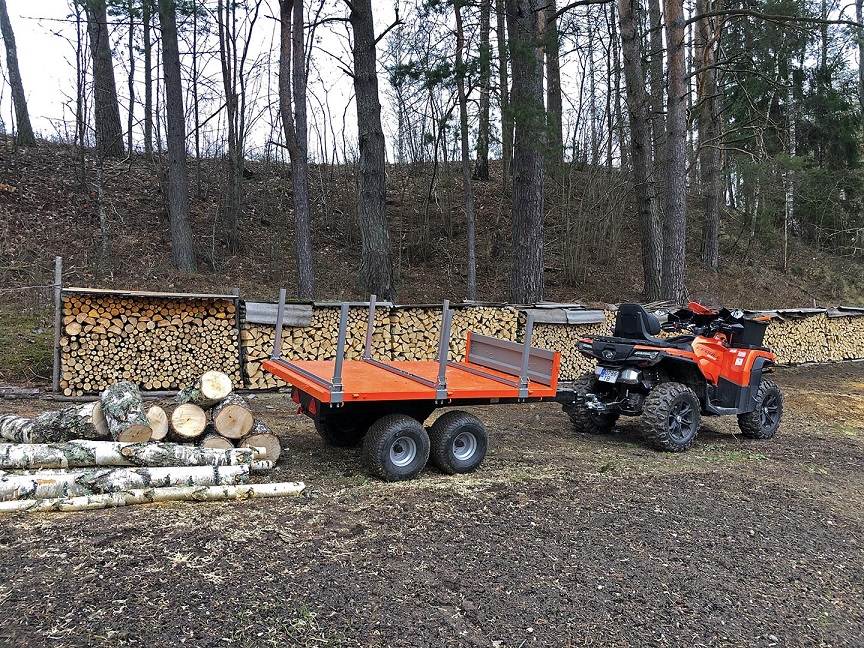

Forestry Posts
Top linked rear hatch
Easy and simple!
FT-1600 OFFROAD can help you with your daily tasks and solve several problems.
We listened to users and developed trailers that surpass those expectations. See below what are the common problems when sourcing tipper trailers for tractors, loaders and other small machinery. And what we have done to surpass the expectations with ours.
Problem
The solution offered by Foresteel
Benefit
Customer stories
A few examples of how our products help our customers with their needs.

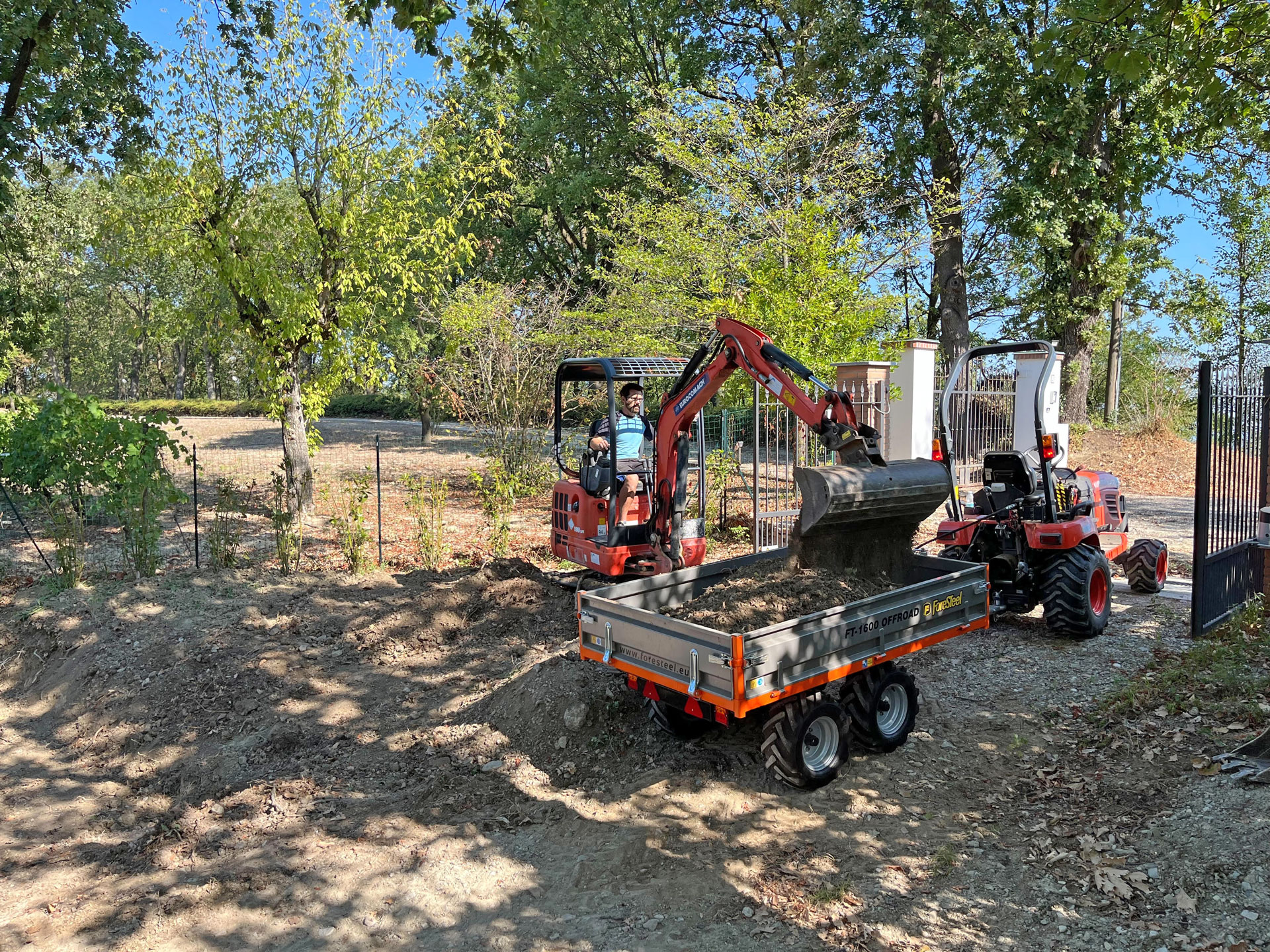

— Antonio Z., Itaalia
I’m so satisfied about my Foresteel and in these days I had a new proof I made the right choice. Simply superb.
— Priit V. from South Estonia
Trailer arrived in perfect shape, thank you and thank you also for the gift, appreciated. I found it very stable on the slope and not so heavy to pull, great choice. It was a pleasure deal with you and Foresteel.
— Arno P. from South Estonia

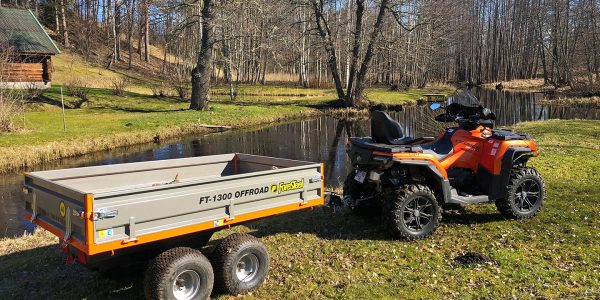

Solid strong construction, quality build and welds. You can immediately see it’s been built to last for a long time. Drives smoothly on the road and in the forest, perfect size for my ATV (CF1000). The platform box is much more versatile than I thought. If you can get either type of extensions aswell so you get much bigger volume for light stuff.
— Antonio Z., Itaalia

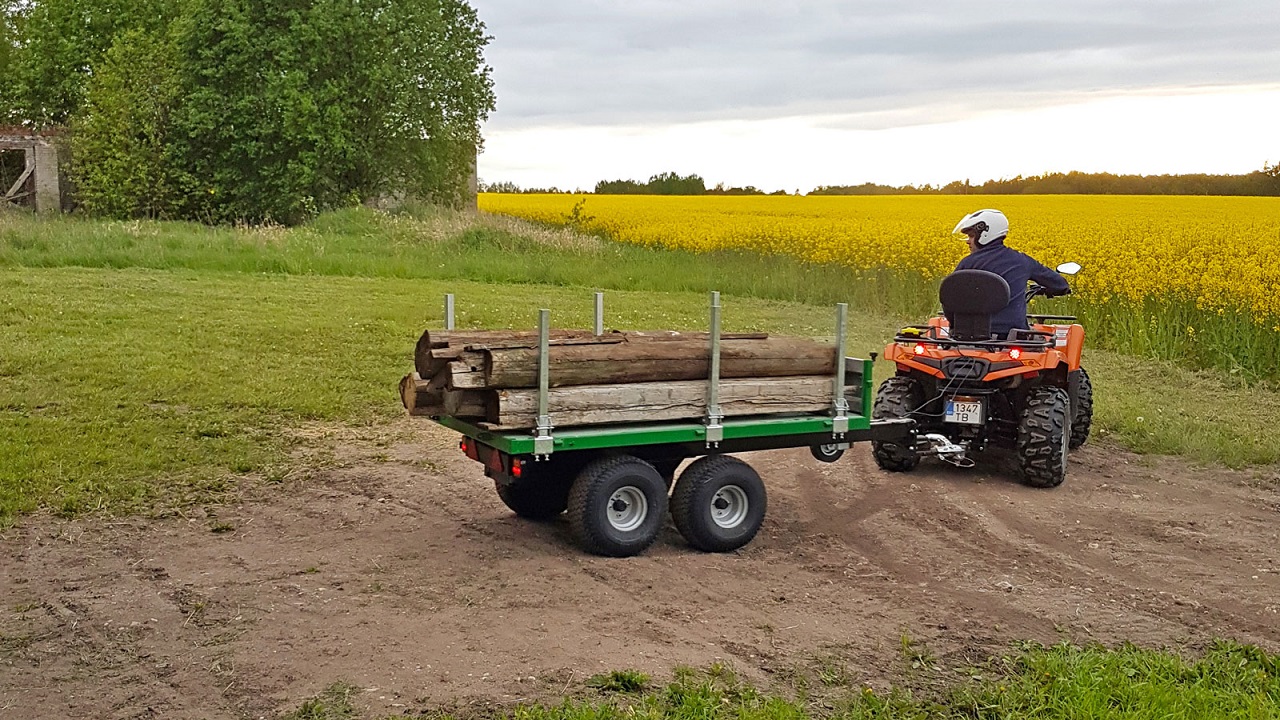

I'm happy with the cart. The cart is balanced and performs well, but I think it requires at least a 600cc ATV or even an tractor. I initially chose manual handpump hydraulics, but switched to more comfortable electro-hydraulics later. I also later ordered optional gravel hatch and forestry posts. Everything works. Forestry posts are easy to install and can be conveniently loaded from the side.
— Indrek, Estonia
Multifunctionality. One of the main aspects for me was an full platform body with corner posts so I can open up all sides separately and load. Great quality and a lot of usage possibilities. Investment for the long term.
