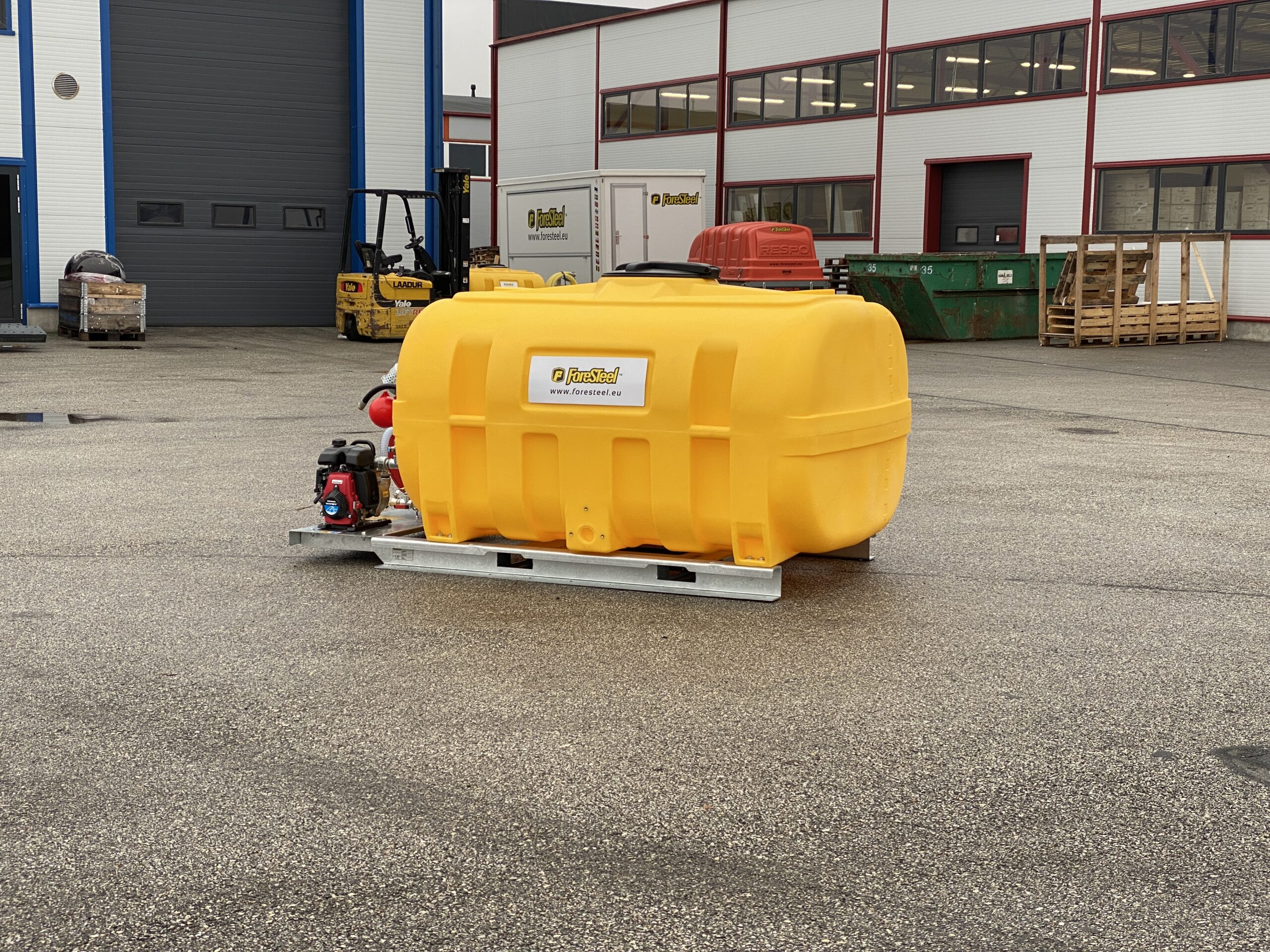

FTW-2000 Water Bowser Platform

FTW-2000 Water Bowser Platform

Everything needed for irrigation operations is included in this ready-to-work set.

Mobile irrigation, watering, firefighting platform. The mobile watering solution has been modified to be readily lifted, moved, and operated by anyone with little expertise. The system’s on-tank instructions make it simple and intuitive to use by anyone. Load it to any utility vehicle, van, pickup truck, golf cart, trailer or other. Achieve higher irrigation efficiency and cut workforce requirements.

With the optional Zero Emission electrical pumps, you may go emission-free.

View technical data
  • Customize Your Equipment

  • *

  • *

  • *

  • *

2000L Water Bowser from Foresteel

Irrigation, water transport and firefighting systems that are reliable and ready to use.

Foresteel FTW-2000 Watering Tank Benefits

Technical data

Tank capacity

2000 L

Dimensions

L 2400 mm x W 1350 mm x H 1310 mm
* (length may vary by ± 30 mm)

Weight (empty)

260 kg

Weight (full)

2260

Construction

Durable UV resistant PE plastic tank on galvanized steel frame with forklift pockets (4-way lifting).
Steel frame has prefabricated holes for fixing on custom platforms.

Pumping system (Gasoline)

Gasoline Honda WX Easy Start water pump, max 240 l/min
Fuel tank: 1.2 L
Fuel type: Unleaded (98). BIOFUEL NOT SUITABLE
Self priming time: 120 sec at 5m

Maintenance: full oil change after every 6 months or 50 hours of use (10W30). Hour meter installed on every Foresteel gasoline FTW system

Flow output dependant on hose parameters.

Work time (Gasoline)

Work time at full throttle 1.3 hours. Equals over 18000 liters.
(30x 600L/18x 1000L/9x 2000L tankfulls)

Pumping system (Electric)

12V electrical pump, 26.5 l/min max capacity, integrated filter.
Integrated 75Ah battery pack with charge indicator and standalone smart charger included.
Flow output dependant on hose parameters.

Work time (Electric)

Work time approx 3 hours with full battery. Equals over 4000 liters.
(14x 300L/7x 600L/4x 1000L/2x 2000L tankfulls)

Charging (Electric)

Integrated charge level indicator with charger plug on battery pack.
Standalone 220V fully automatic charger included with the delivery.
Charge time: charge overnight

Hose

15m 3/4" hose on automatic reel (can be substituted with 20m 1/2” hose on request)
30m 1” or 40m ¾” hose on automatic reel

Suction/filling

7m suction hose with sieve and float (excluded on 12V Electric pump systems).
Integrated valve system allows adjusting the system to preferred mode: suction/filling or pressure/irrigation mode.

Extras

Baffles against sloshing I 12V Electric pump, Watering tools, Flow Meter, Additional Inlet

Delivery information

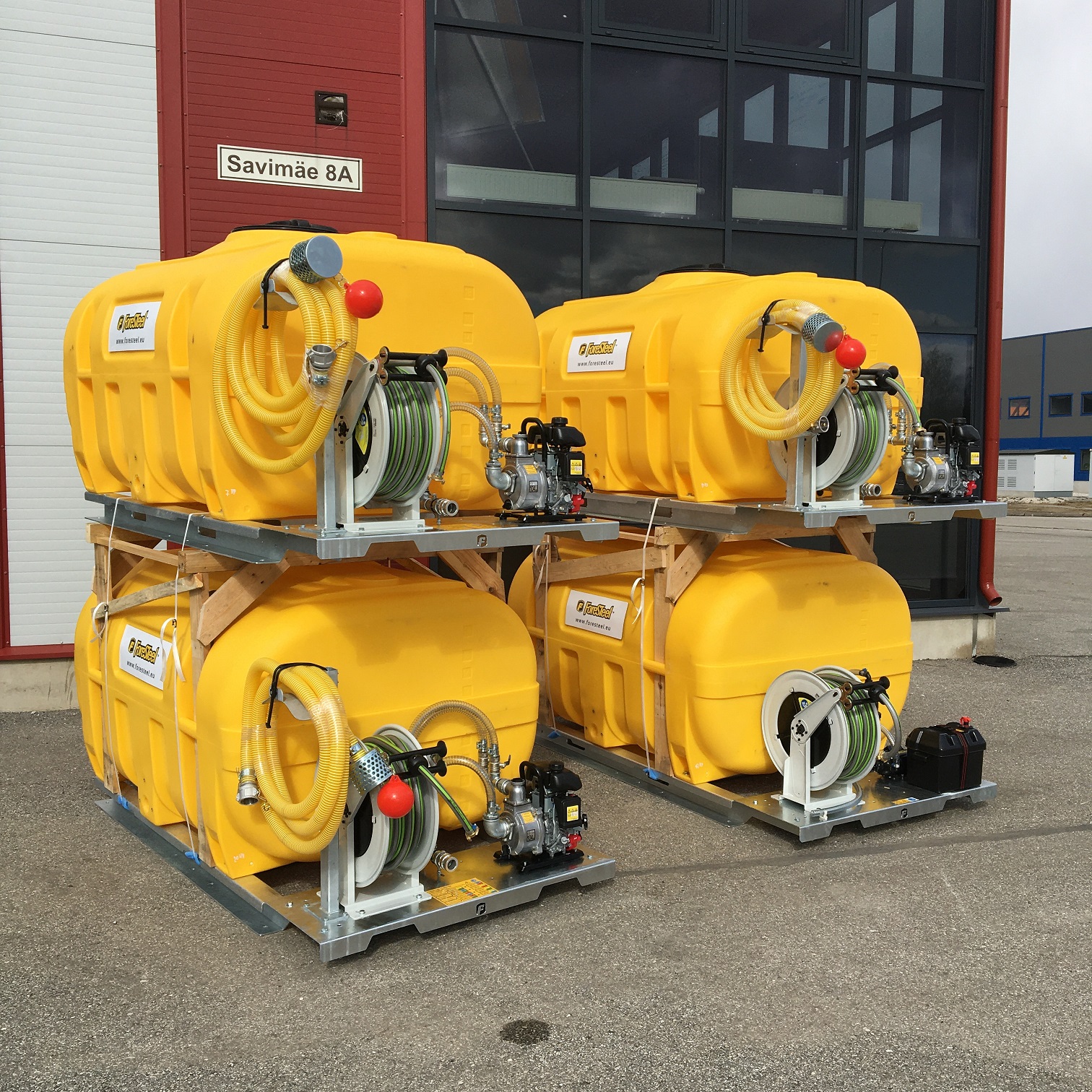

Delivered to door with tail lift truck. Packaged on pallet, in white film. No unloading equipment needed by customer for receipt

Standard equipment

PE plastic tank on steel underframe with forklift pockets
Details
PE plastic tank on steel underframe with forklift pockets
PE plastic tank on steel underframe with forklift pockets
15m 3/4″ watering hose on automatic reel with adjustable spray nozzle
Details
15m 3/4″ watering hose on automatic reel with adjustable spray nozzle
15m 3/4" watering hose on automatic reel with adjustable spray nozzle
Honda WX15 240 l/min easy start gasoline engine pump
Details
Honda WX15 240 l/min easy start gasoline engine pump
Honda WX15 240 l/min easy start gasoline engine pump
Valve system to use pump also for filling the tank from lake or pond
Details
Valve system to use pump also for filling the tank from lake or pond
Valve system to use pump also for filling the tank from lake or pond
7m suction hose with sieve and float
Details
7m suction hose with sieve and float
7m suction hose with sieve and float (not included with FTW-EL-25 pump option)
380 mm diameter top hatch
Details
380 mm diameter top hatch
Top dome with swash baffle and hinged cover increase safety, usage possibilities and allow for easy cleaning

Optional equipment

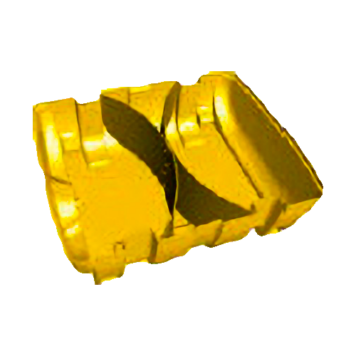

Sloshing baffles
Details
Sloshing baffles
Baffles for high speed use
Electric pump, 12V 26.5l/min max, with battery pack
Details
Electric pump, 12V 26.5l/min max, with battery pack
Fully autonomous zero-emission irrigation with electric pump for noiseless and emissionless action. Integrated battery pack gives more than 3h constant work time that allows to empty more than 4300 liters of volume. 12V 26,5l/min max, automatic start-stop system to maximize battery efficiency.
Automatic reel with 30m 1” or 40m ¾” watering hose
Details
Automatic reel with 30m 1” or 40m ¾” watering hose
Automatic reel with 30m 1” or 40m ¾” watering hose, only available for FTW-2000 series.
Remote controlled irrigation boom
Details
Remote controlled irrigation boom
Remote controlled irrigation boom for FTW Irrigation Trailers & Platforms. For irrigation of plants and trees planted in rows. Retrofittable to any FTW unit, max width and work dimensions vary based on unit it is installed on. Consists of two 1.6m irrigation booms installed on two sides of the unit. Remote controlled valves open and close water flow as needed from operators position with remote switch. Requires 12V supply (5A), connects to towing vehicle battery or cigarette lighter outlet. Possibility to use one side at a time. Kit includes:
  • 2 Irrigation Boom sets with water breakers (shower heads);
  • Wiring set with quick-plug connections
  • Hoses and brackets with assembly instructions
  • All in a easy to install set.
* When ordered together with FTW unit, comes semi-assembled and already prepared. See in action video: https://www.youtube.com/watch?v=ZGR7qi85bpE

Easy and simple!

FTW-2000 Watering Bowser can help you with your daily tasks and solve several problems.

Seasonal irrigation tasks take a lot of time and resources. We have extensive experience of producing efficient mobile irrigation, watering and liquid transport systems.

We have worked closely with customers and redesigned the mobile watering solution so it can be easily lifted, transported and used by anyone with basic knowledge. Simplified on-tank instructions make using the system easy and intuitive. Carefully chosen reliable components make it one of the most reliable and trustworthy options available on the market.
Here’s how we can help:

Problem

The solution offered by Foresteel

In one set, a compact ready-to-use water transportation, irrigation, and firefighting solution. Tanks that are durable and rigid, as well as pumping systems that are optimized, are all assembled on a solid steel frame with forklift pockets. Grounds maintenance and horticultural enterprises, park maintenance managers, farms and municipality managers can all benefit from this irrigation solution.
Foresteel mobile water bowsers are the go-to solution for groundcare and horticulture companies, farms, university campuses, campsites, vineyards, park maintenance and public spaces managers working where time is valuable and an external water supply is not available.

Benefit

Save time on mobile watering tasks and make work more convenient and less distracting.

Customer stories

A few examples of how our products help our customers with their needs.

Vineyard | Emanuel G. from Manciano Italy

„My irrigation trailer arrived promptly as estimated. Axle was unassembled for delivery but was quick and easy to install with included instructions. I am very happy with the product, it’s very well built with care and good material. Before the water trailer I subcontracted the job of irrigating to an external company, but the subcontractor was not always available and I had to beg him to do the work. No more begging! With so dry weather will be required to even irrigate the 1250 young olive trees to grow to production. The product is of high quality and construction. A very pleasant experience, nice people, good support. I’d be happy to do more business with Foresteel.“ Model: FTW-2000T Irrigation trailer with 40m 3/4” automatic hose reel.

A small selection of customers…

…to whom we have already delivered an unit to!

Product showcase

Cool images and videos we have to show you more about our products.

Product showcase

Cool images and videos we have to show you more about our products.

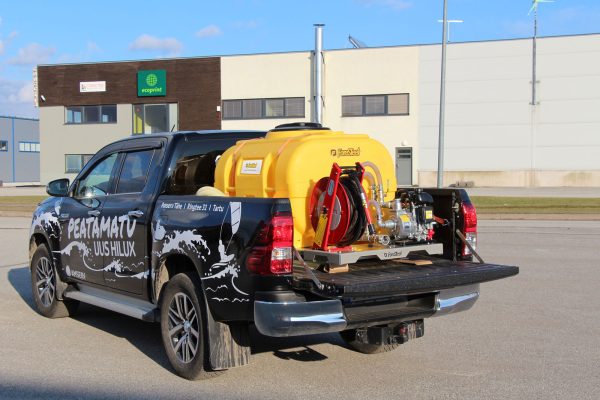

Foresteel-FTW-600-water-tank-Toyota-Hilux-Pickup-FT-WATER-HILUX-cargo-bed-01

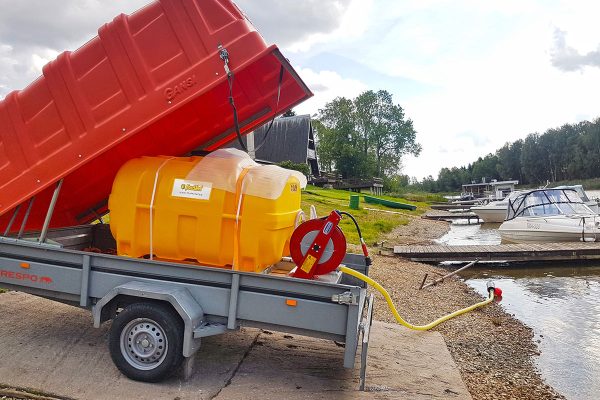

Foresteel-FTW-600-water-tank-on-car-trailer

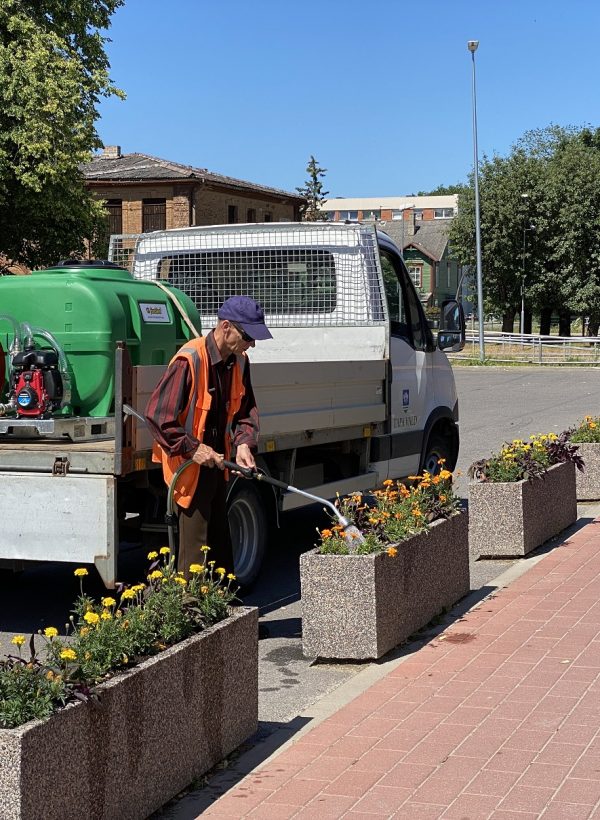

Foresteel-FTW-irrigation-solution-use-03

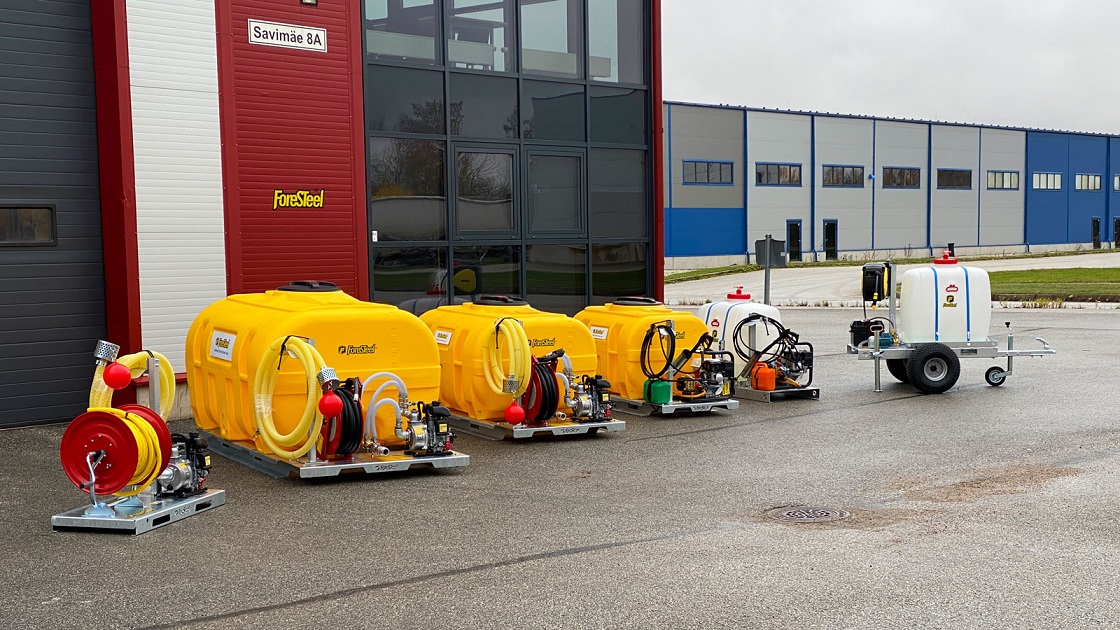

005-foresteel-ft-water-irrigation-platform

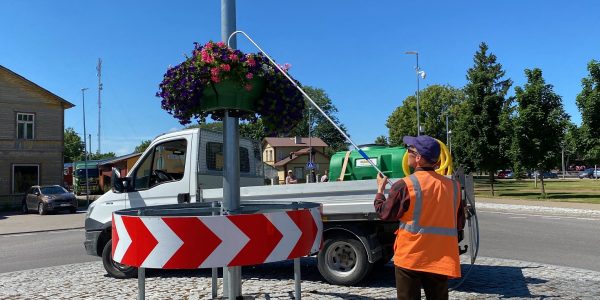

Foresteel-FTW-irrigation-solution-use-02
