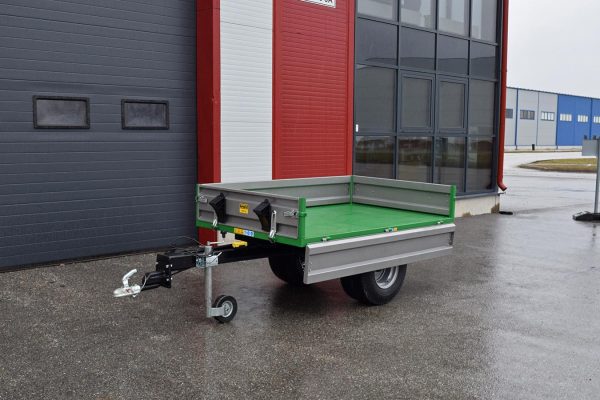

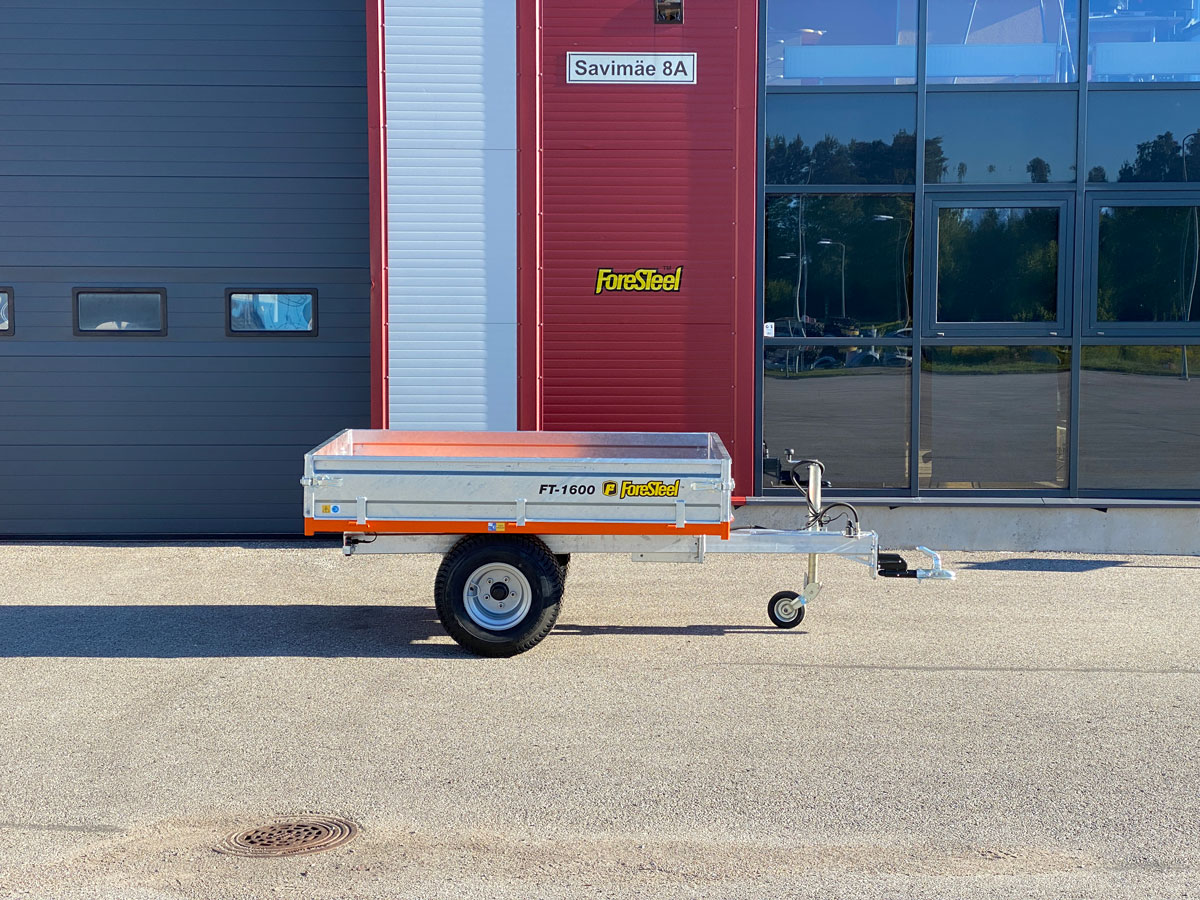

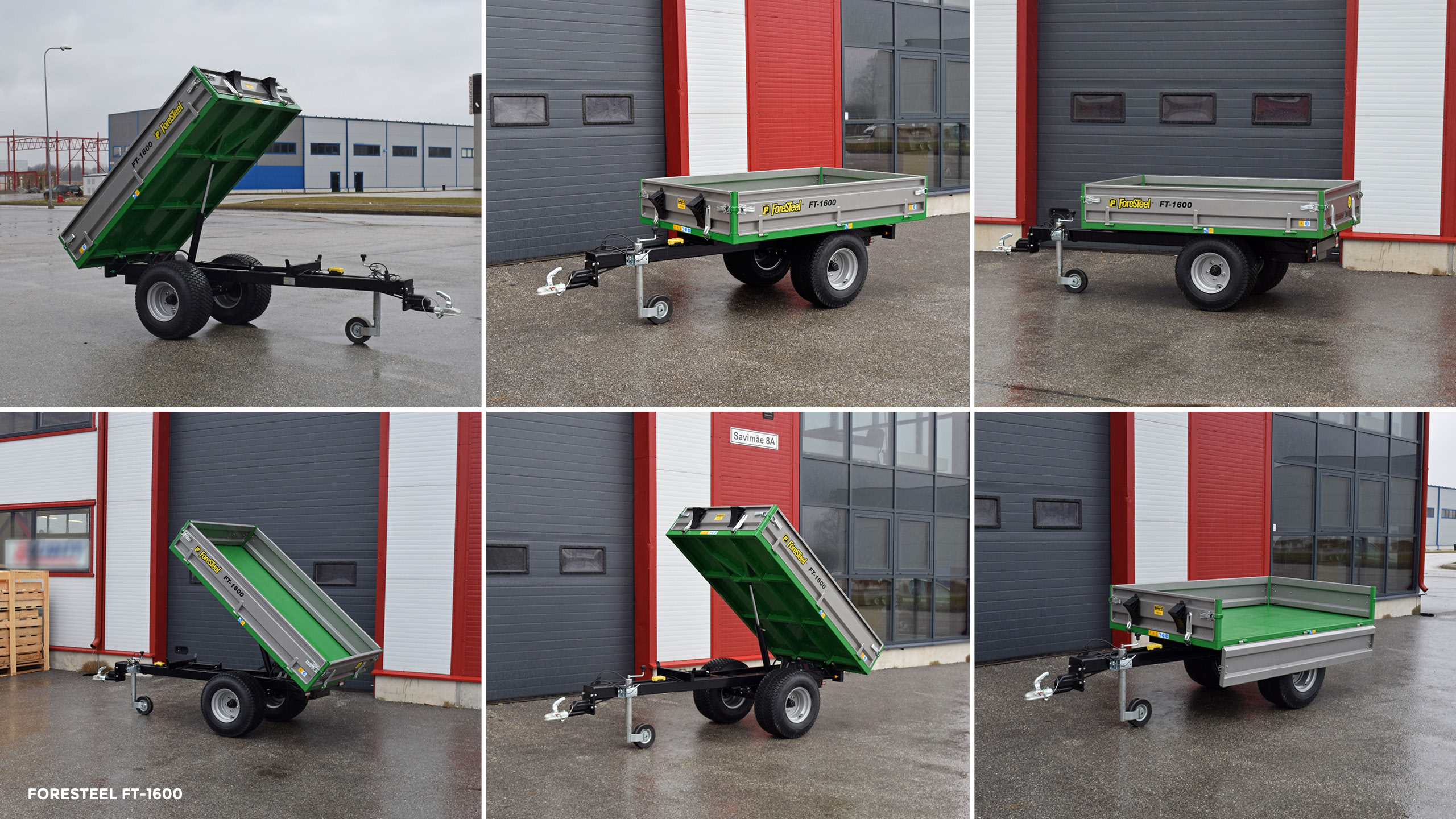

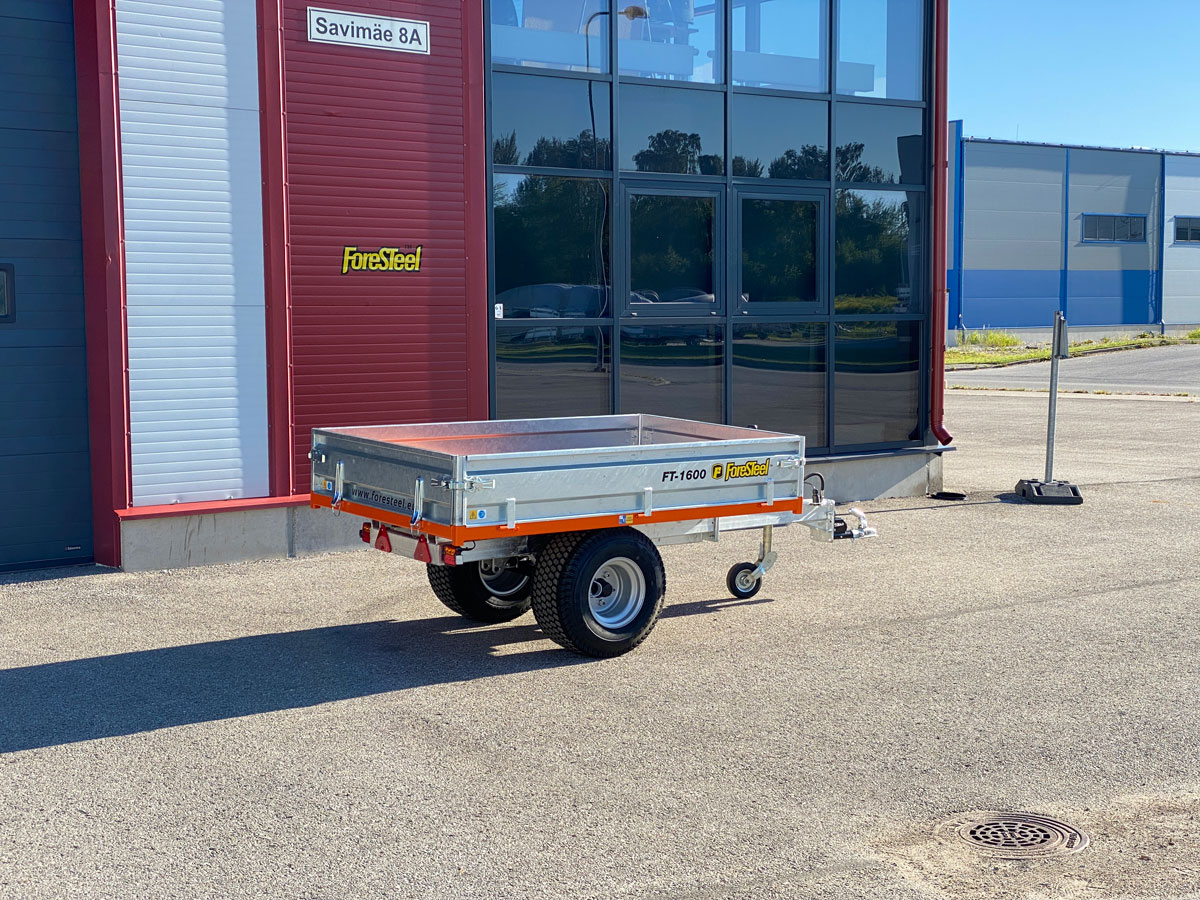

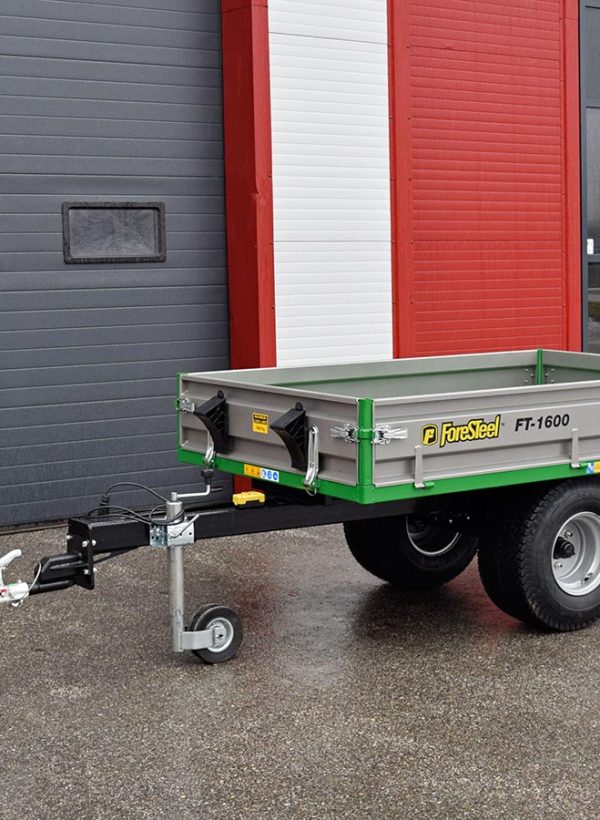

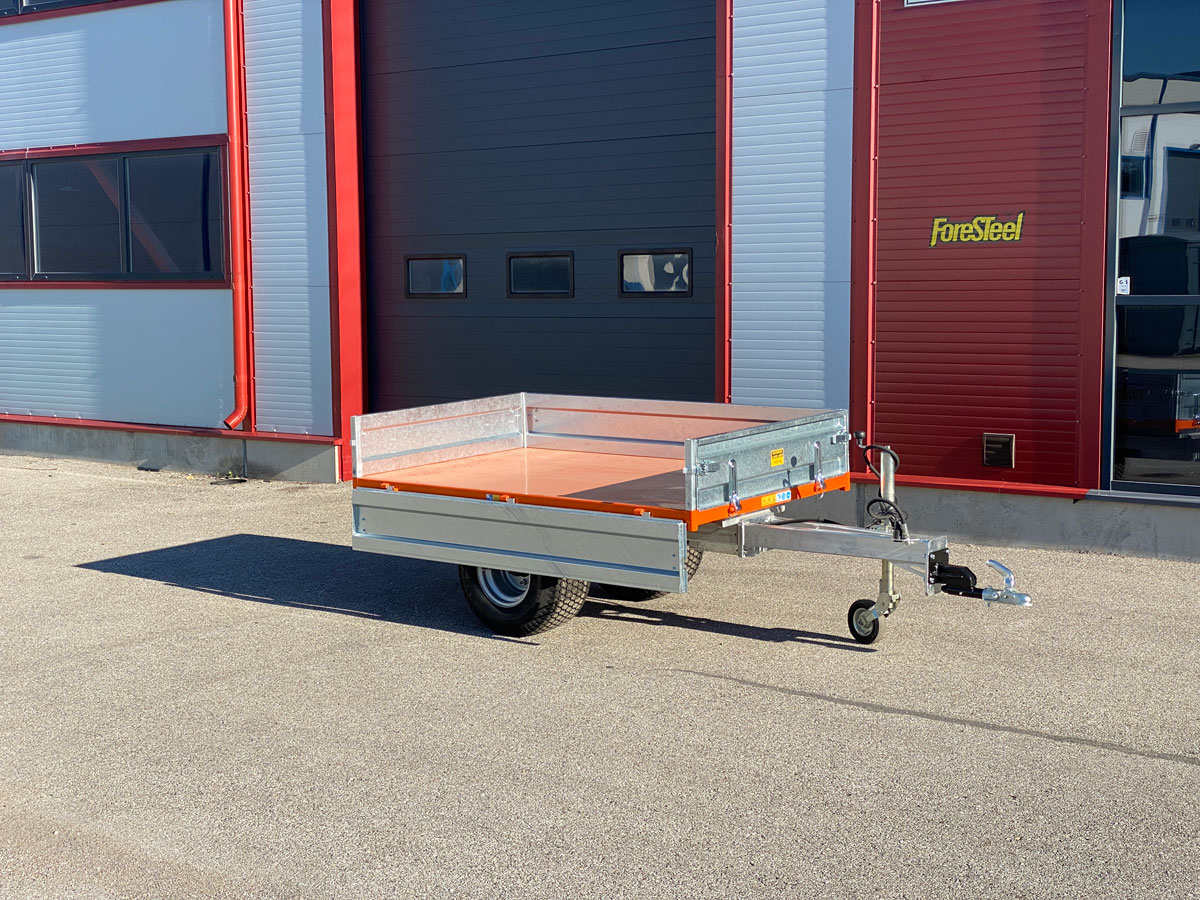

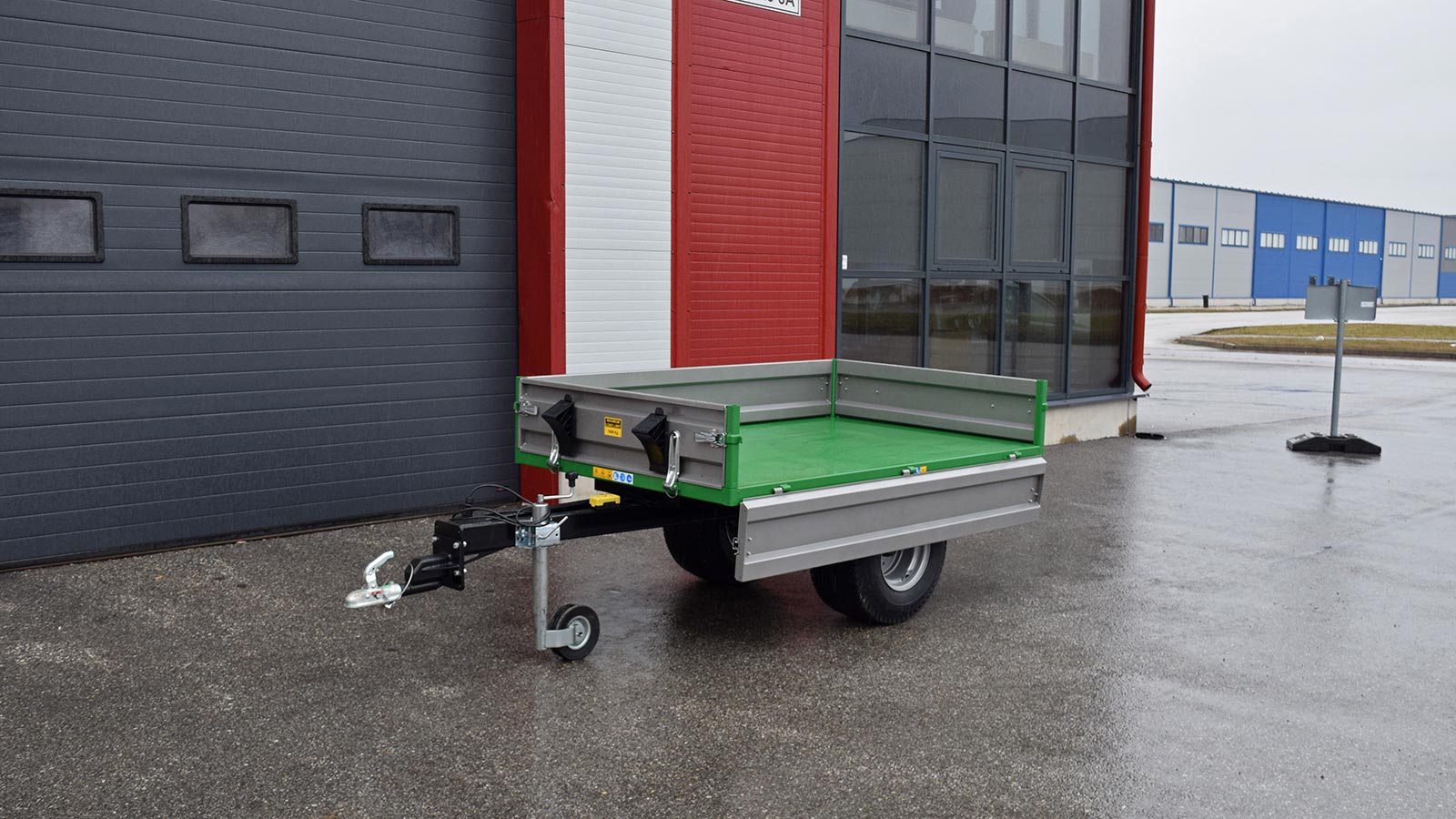

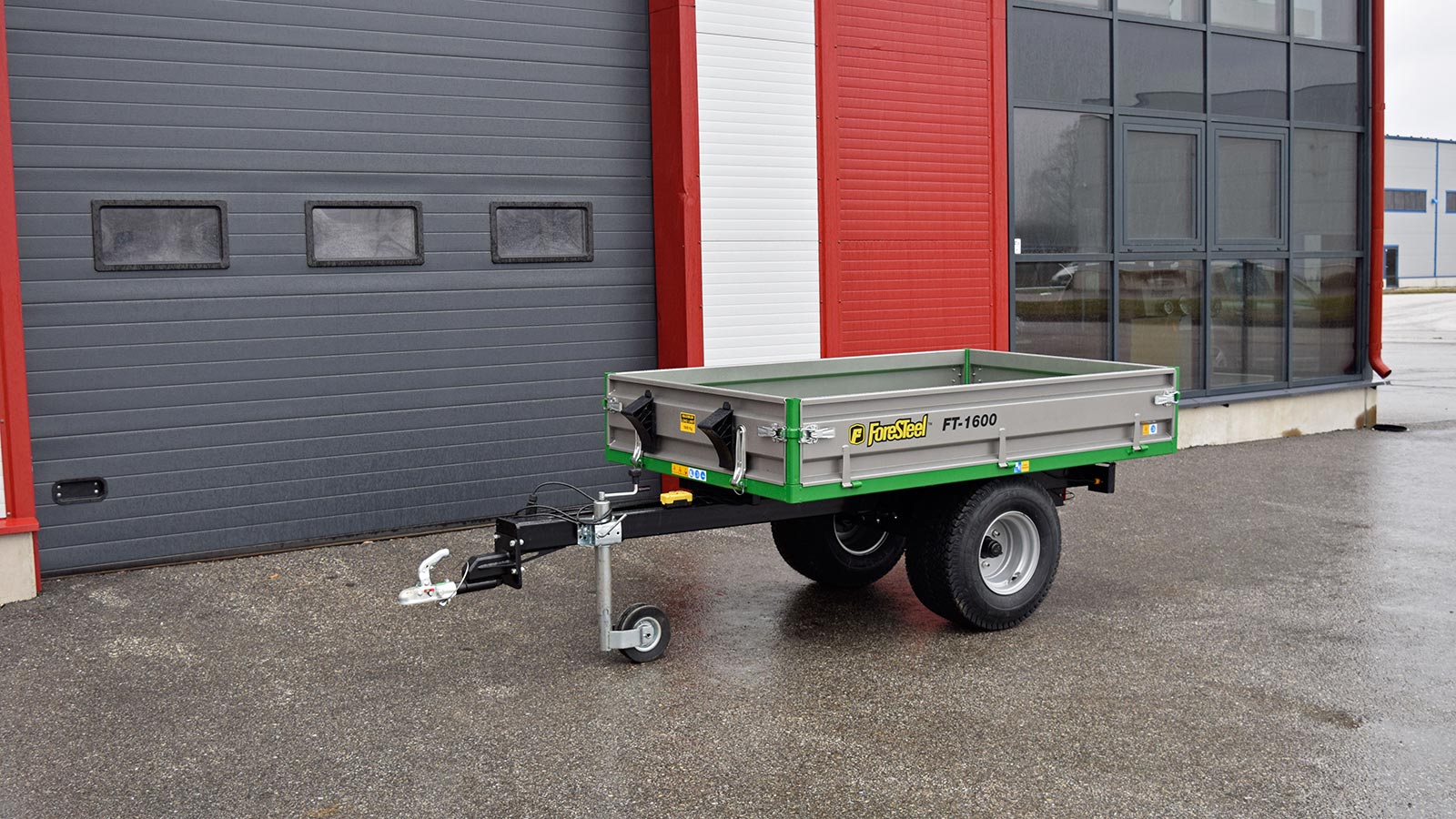

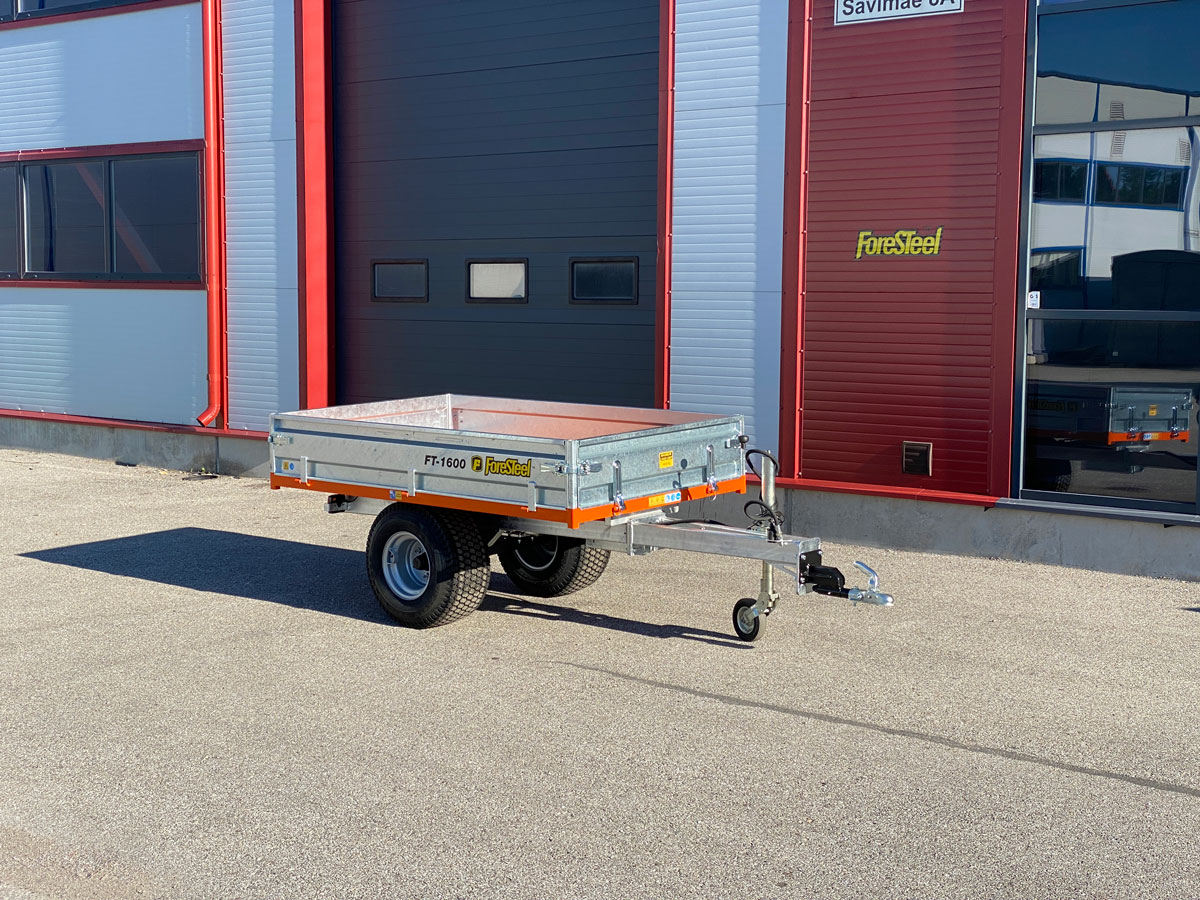

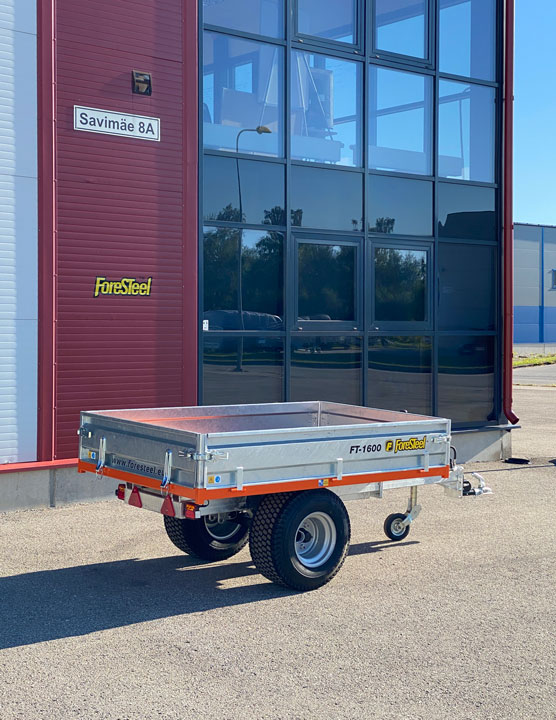

Trailer FT-1600 from Foresteel
Tractors, loaders, ATVs, and UTVs can all benefit from a single axle hydraulic tipping trailer with a large loading capacity.
FT-1600 Benefits
Technical data
| Trailer size: | FT-1600 |
|---|---|
| Loading capacity | 1600 kg |
| NET weight | 380 kg |
| Inside dimensions | 2000 mm x 1250 mm x 300 mm (without extensions) |
| Volume | 0.75 m3 (without extensions) |
| Measurments | L 3300 mm X W 1360 mm |
| Platform thickness | 3 mm; high strength steel |

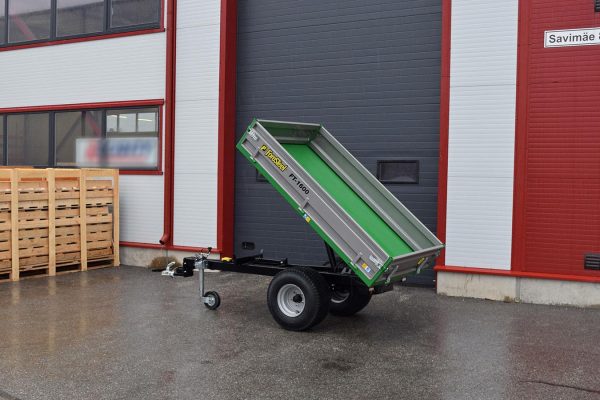

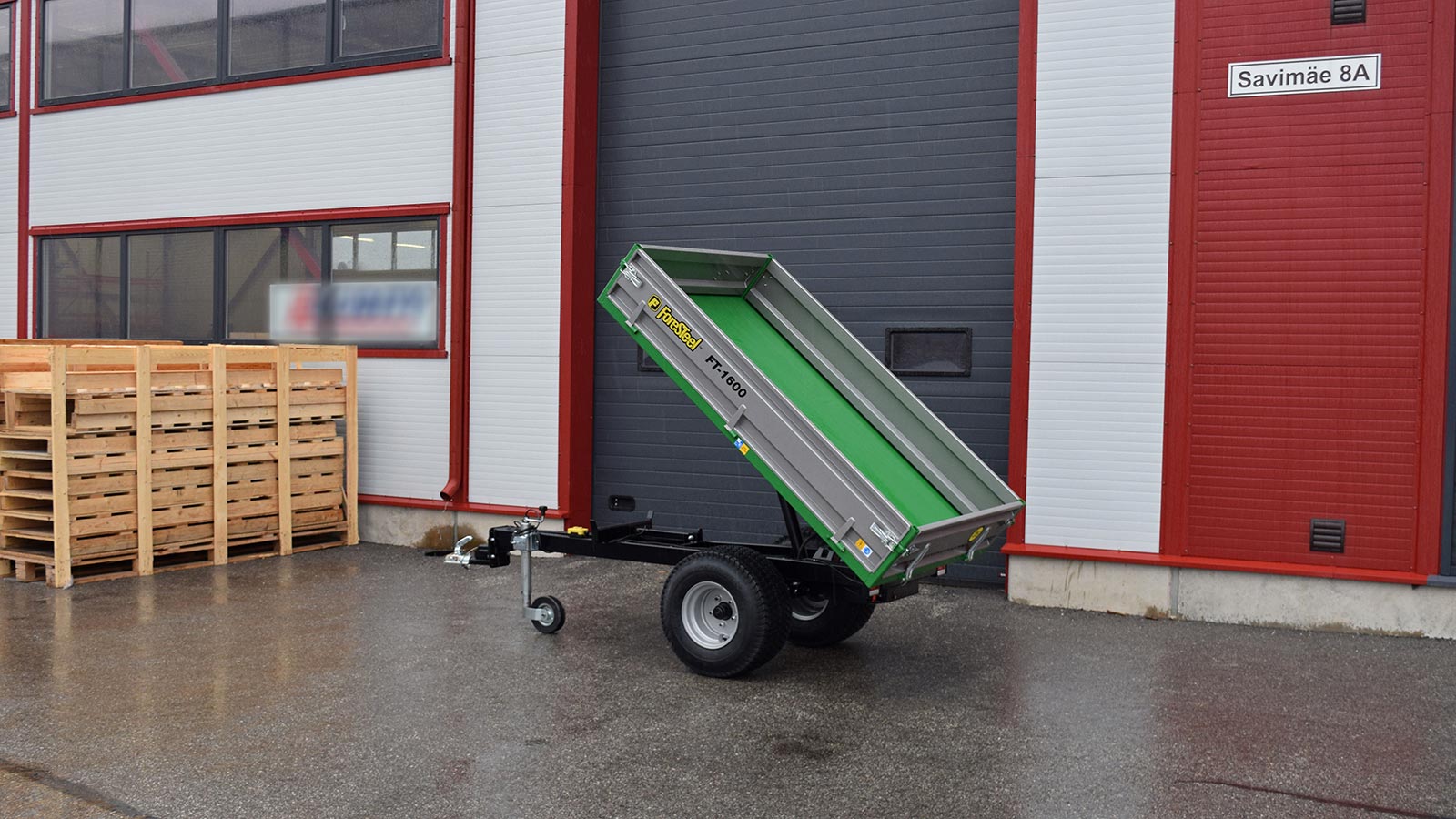

| Tipping | Rear, Hydraulic, 50 ° |
| Wheel size | 26” x 12” x 12” |
| Extras | 40 mm Towing eyelet (replaces standard coupling option), NET extensions (Leaf extensions) 700 mm, Extra level side pannels 300 mm, Electro hydraulic tipping kit. Includes batter, charger, integrated battery indicator, charging plug, wired remote |
| Delivery information | Delivered to door with tail lift truck. Packaged on pallet, with drawbar and wheels unassembled for transport. |
| FT-1600 COC/COCL Version | EU Type Approved/Street legal version with CoC papers |
Standard equipment
D50 mm ball coupling
Details

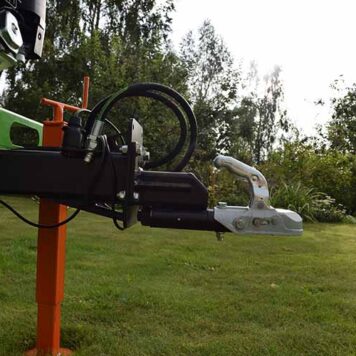

Adjustable height coupling
Details
Wide turf tires
Details
Wide turf tires

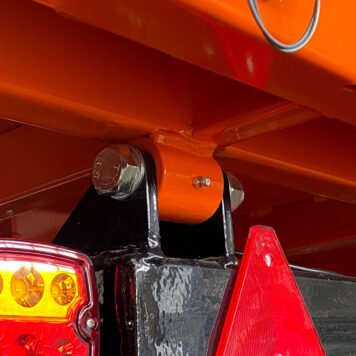

Greasable tip bearings
Details
Platform body with corner posts
Details
Platform body with corner posts
All side panels openable and removable
Details
All side panels openable and removable
Hydraulic tipping – hydraulic hose connection in standard
Details
Hydraulic tipping – hydraulic hose connection in standard
High quality finish in Foresteel orange or green
Details
High quality finish in Foresteel orange or green
Adjustable support wheel
Details
Adjustable support wheel
LED lights with rear triangle reflectors
Details
LED lights with rear triangle reflectors
Optional equipment
40 mm Towing eyelet
NET extensions 70 cm

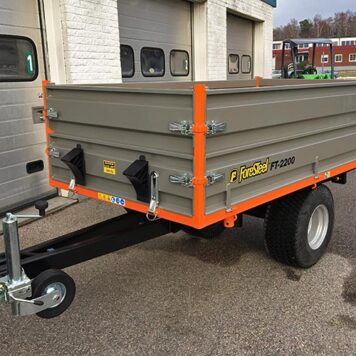

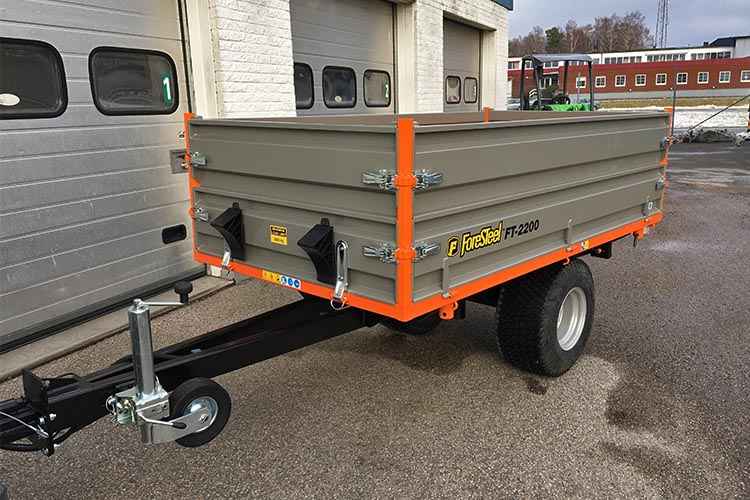

Extra level side panels 30 cm
Manual handpump tipping kit
Electro hydraulic tipping kit

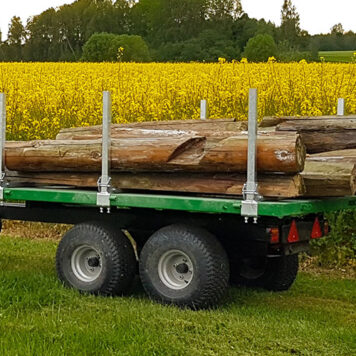

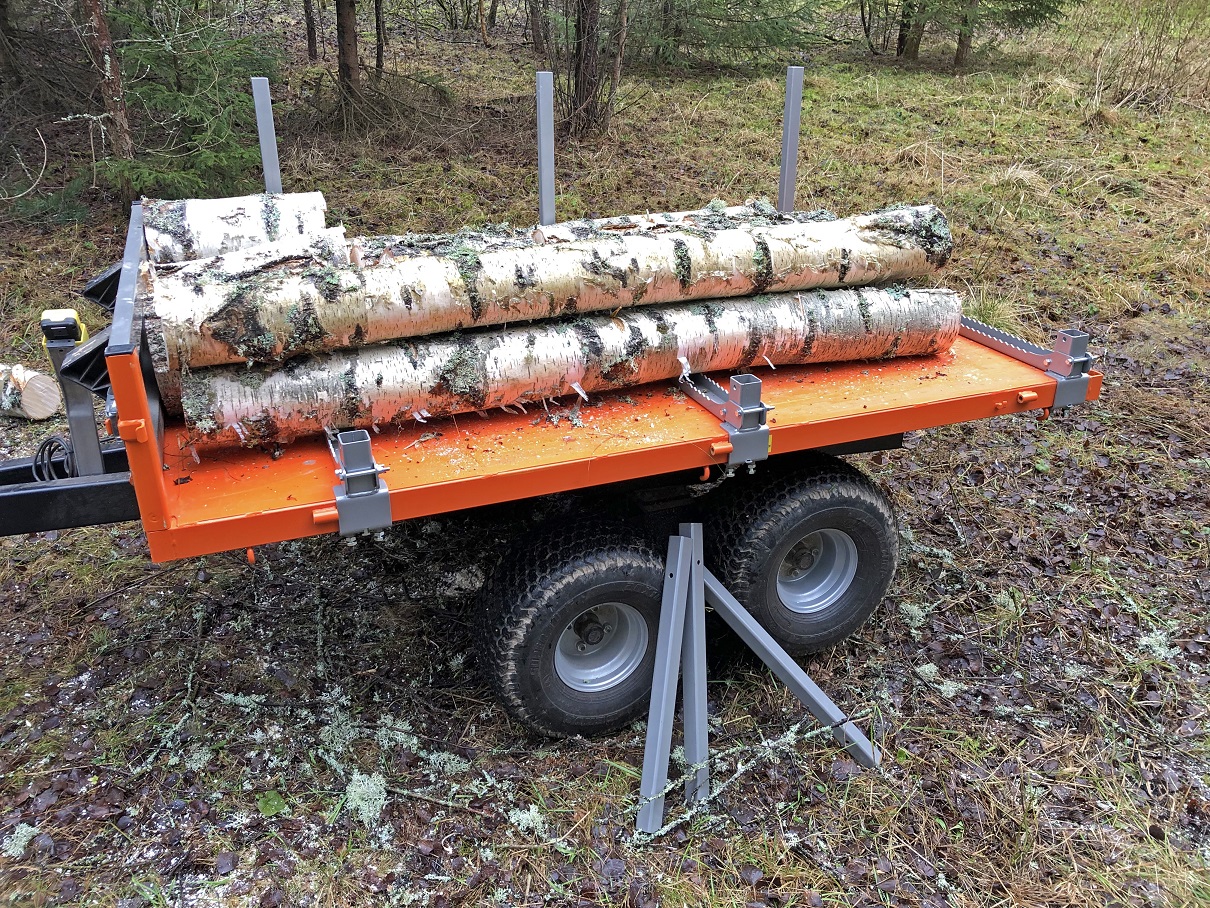

Forestry Posts

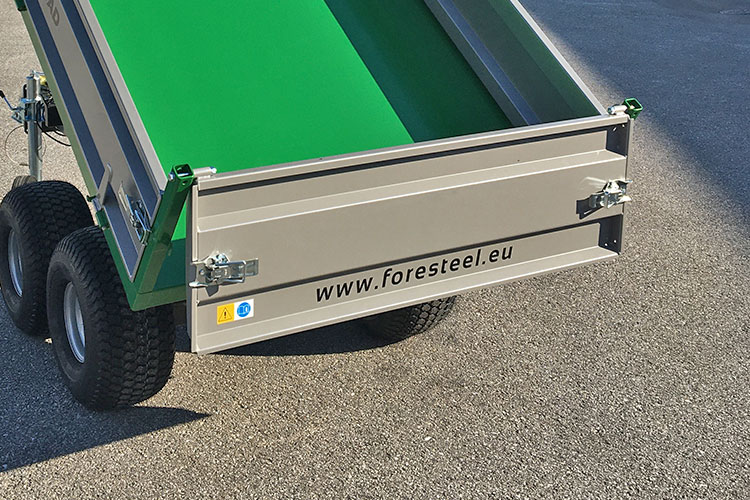

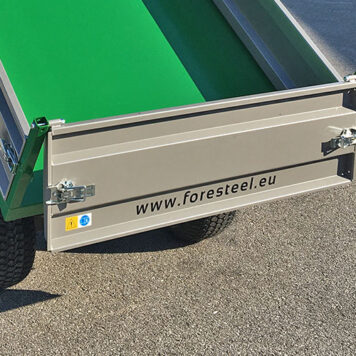

Top linked rear hatch
Easy and simple!
FT-1600 can help you with your daily tasks and solve several problems.
We listened to users and developed trailers that surpass those expectations. See below what are the common problems when sourcing tipper trailers for tractors, loaders and other small machinery. And what we have done to surpass the expectations with ours.
Problem
The solution offered by Foresteel
Benefit
Customer stories
A few examples of how our products help our customers with their needs.
Peeter K., Estonia

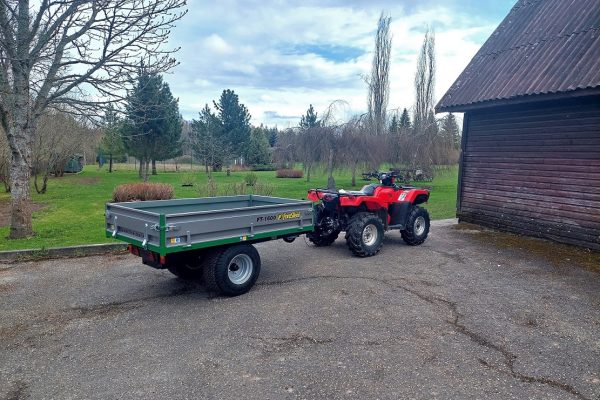

“Strong yet light. GREAT build quality and fits perfectly for my Honda. I was considering between the single axle and bogie axle versions but went with the single axle FT-1600 as I have most turf areas and it is super delicate on greens with it’s wide turf tires. Electro hydraulic tips full load in seconds!”

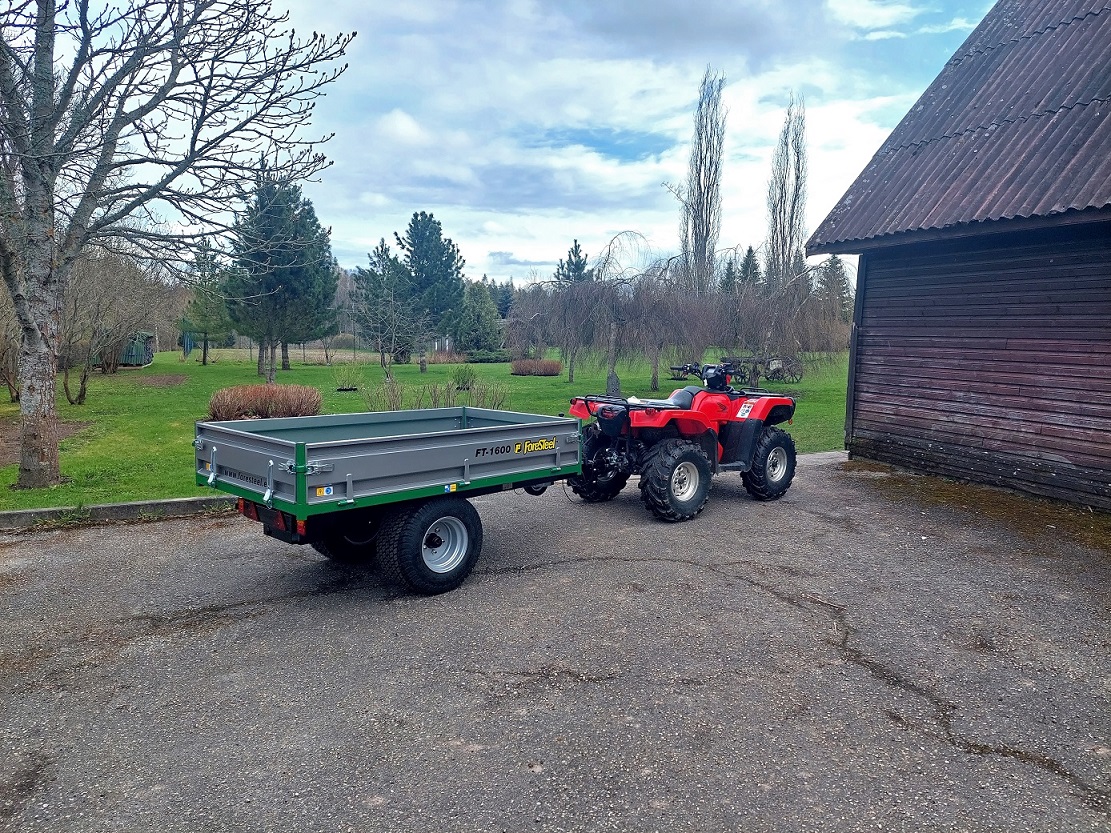

"FT-1600 ATV set"
