FTW-600T Trailed Water Bowser

FTW-600T Trailed Water Bowser

Everything needed for irrigation operations is included in this ready-to-work set.

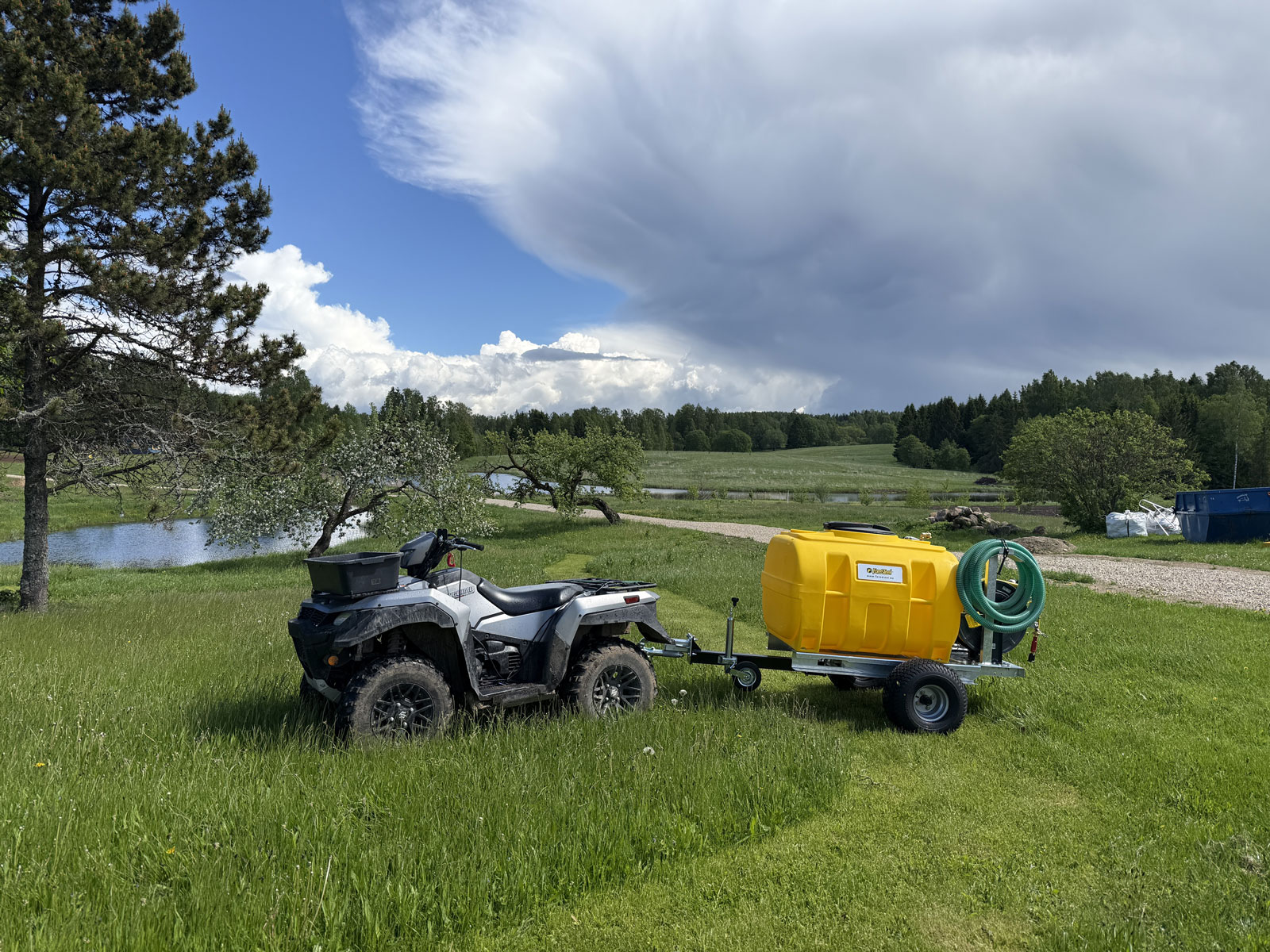

600L trailed watering bowser with integrated pumping system and automatic hose reel for on-site tow.

For mobile irrigation tasks, towable autonomous irrigation system for small machinery is available. Tow with any small machinery available like ATV, UTV, utility vehicle, small tractor, loader or other small vehicles. Achieve higher irrigation efficiency and cut workforce requirements.

Rigid PE plastic water tank on chassis with broad turf wheels and ball coupling for towing in tight spaces. Perfect for both outdoor and indoor use, equipped with automatic hose reel and reliable pumping system for high efficiency operation.

With the optional Zero Emission electrical pumps, you may go emission-free.

View technical data
  • Customize Your Equipment

  • *

  • *

  • *

  • *

  • *

600L Trailed Water Bowser for on-site tow

Irrigation, water transport and firefighting systems that are reliable and ready to use.

Foresteel FTW-600 Watering Trailer Benefits

Technical data

Tank capacity

600 L

Dimensions

L 2550 mm x W 1460 mm x H 985 mm

Weight (empty)

260 kg

Weight (full)

860 kg

Construction

Durable UV resistant PE plastic tank on galvanized steel frame with forklift pockets (4-way lifting).
Steel frame has prefabricated holes for fixing on custom platforms.

Pumping system (Gasoline)

Gasoline Honda WX Easy Start water pump, max 240 l/min
Fuel tank: 1.2 L
Fuel type: Unleaded (98). BIOFUEL NOT SUITABLE
Self priming time: 120 sec at 5m

Maintenance: full oil change after every 6 months or 50 hours of use (10W30). Hour meter installed on every Foresteel gasoline FTW system

Flow output dependant on hose parameters.

Work time (Gasoline)

Work time at full throttle 1.3 hours. Equals over 18000 liters
(30x 600L/18x 1000L/9x 2000L tankfulls)

Pumping system (Electric)

12V electrical pump, 26.5 l/min max capacity, integrated filter.
Integrated 75Ah battery pack with charge indicator and standalone smart charger included.
Flow output dependant on hose parameters.

Work time (Electric)

Work time approx 3 hours with full battery. Equals over 4000 liters.
(14x 300L/7x 600L/4x 1000L/2x 2000L tankfulls)

Charging (Electric)

Integrated charge level indicator with charger plug on battery pack.
Standalone 220V fully automatic charger included with the delivery.
Charge time: charge overnight

Hose

15m 3/4" hose on automatic reel
(can be substituted with 20m 1/2” hose on request)

Suction/filling

7m suction hose with sieve and float (excluded on 12V Electric pump systems).
Integrated valve system allows adjusting the system to preferred mode: suction/filling or pressure/irrigation mode.

Chassis

Modular steel chassis with bolted axle and drawbar. D50 mm ball coupling. Wheeled parking foot. Wide turf tires.
* Chassis is removable and the unit can be converted into an watering platform to be transported with any trailer or pickup truck

Extras

Baffles against sloshing I 12V Electric pump, Watering tools, Flow Meter, Additional Inlet

Delivery information

Delivered to door with tail lift truck. Packaged on pallet, with drawbar and wheels unassembled for transport. Easy assembly. Instructions included. No unloading equipment needed by customer for receipt (Unless requested for delivery fully assembled)

Standard equipment

PE plastic tank on steel underframe with forklift pockets
Details
PE plastic tank on steel underframe with forklift pockets
PE plastic tank on steel underframe with forklift pockets
Strong and UV resistant PE plastic tank without baffles
Details
Strong and UV resistant PE plastic tank without baffles
Strong and UV resistant PE plastic tank without baffles
15m 3/4″ watering hose on automatic reel with adjustable spray nozzle
Details
15m 3/4″ watering hose on automatic reel with adjustable spray nozzle
15m 3/4" watering hose on automatic reel with adjustable spray nozzle
Honda WX15 240 l/min easy start gasoline engine pump
Details
Honda WX15 240 l/min easy start gasoline engine pump
Honda WX15 240 l/min easy start gasoline engine pump
Valve system to use pump also for filling the tank from lake or pond
Details
Valve system to use pump also for filling the tank from lake or pond
Valve system to use pump also for filling the tank from lake or pond
7m suction hose with sieve and float
Details
7m suction hose with sieve and float
7m suction hose with sieve and float (not included with FTW-EL-25 pump option)
Wheeled parking jack and 380mm diameter top hatch on tank
Details
Wheeled parking jack and 380mm diameter top hatch on tank
Wheeled parking jack and 380mm diameter top hatch on tank
Trailer chassis for 600L version
Details
Trailer chassis for 600L version
Trailer chassis for 600L version with 20x10x8" turf wheels, parking jack, 50mm ball coupling and adjustable drawbar.

Optional equipment

Baffles against sloshing (Internal walls)
Details
Baffles against sloshing (Internal walls)
FTW/PW-series option - upgrade cost displayed, select from configurator. Not separately available. Baffles against sloshing for high speed use over 40km/h. Increase work safety by limiting water movement inside the tank. Baffles can be only added in factory.
Electric pump, 12V 26.5l/min max, with battery pack
Details
Electric pump, 12V 26.5l/min max, with battery pack
Fully autonomous zero-emission irrigation with electric pump for noiseless and emissionless action. Integrated battery pack gives more than 3h constant work time that allows to empty more than 4300 liters of volume. 12V 26,5l/min max, automatic start-stop system to maximize battery efficiency.

Easy and simple!

FTW-600 Trailed Watering Bowser can help you with your daily tasks and solve several problems.

Seasonal irrigation tasks take a lot of time and resources. We have extensive experience of producing efficient mobile irrigation, watering and liquid transport systems.

We have worked closely with customers and redesigned the mobile watering solution so it can be easily lifted, transported and used by anyone with basic knowledge. Simplified on-tank instructions make using the system easy and intuitive. Carefully chosen reliable components make it one of the most reliable and trustworthy options available on the market.
Here’s how we can help:

Problem

The solution offered by Foresteel

In one set, a compact ready-to-use water transportation, irrigation, and firefighting trailer. Tanks that are durable and rigid, as well as pumping systems that are optimized, are all assembled on a solid steel chassis with wide wheels and adjustable tow coupling. Grounds maintenance and horticultural enterprises, park maintenance managers, farms and municipality managers can all benefit from this irrigation solution.
Foresteel mobile water bowsers are the go-to solution for groundcare and horticulture companies, farms, university campuses, campsites, vineyards, park maintenance and public spaces managers working where time is valuable and an external water supply is not available.

Benefit

Save time on mobile watering tasks and make work more convenient and less distracting.

Customer stories

A few examples of how our products help our customers with their needs.

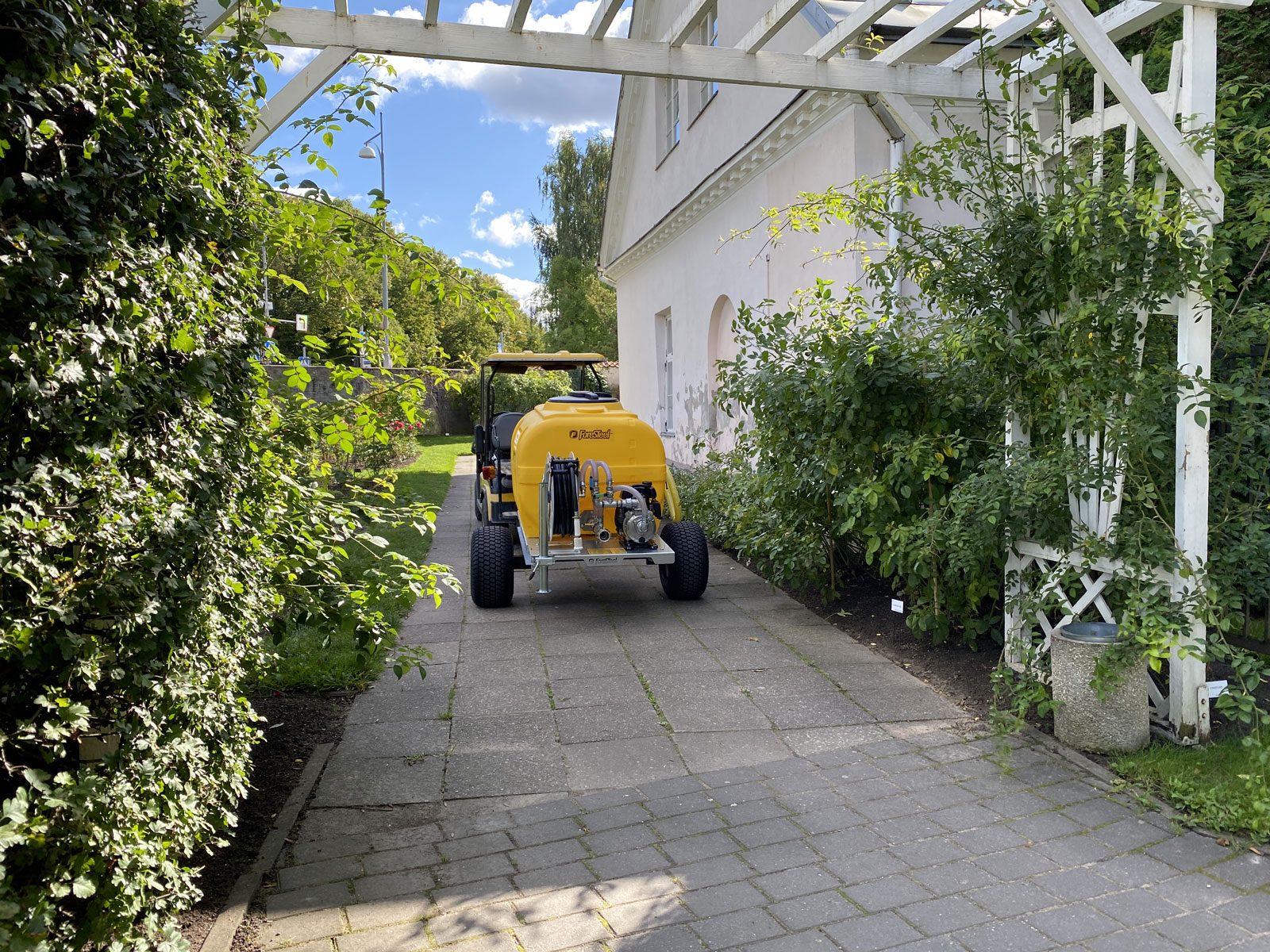

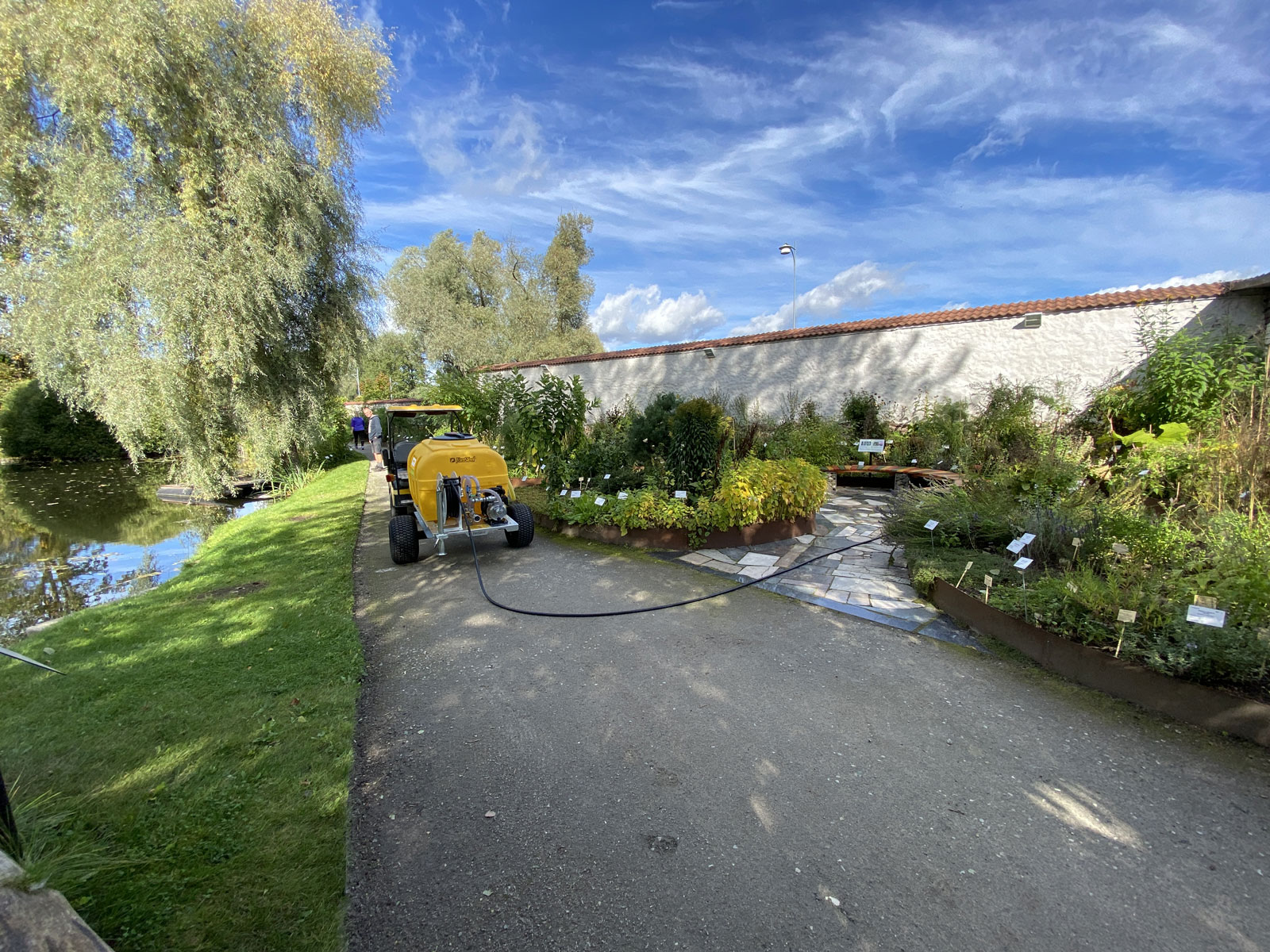

Botanical garden

FTW-600T keeping flowerbeds and plants hydrated and blossoming.

Horticulture company

FTW-600T keeping flowerbeds and plants hydrated and blossoming.

A small selection of customers…

…to whom we have already delivered an unit to!

Product showcase

Cool images and videos we have to show you more about our products.

Product showcase

Cool images and videos we have to show you more about our products.

Foresteel-FTW-1000T-irrigation-trailer-Rundale-Palace-07

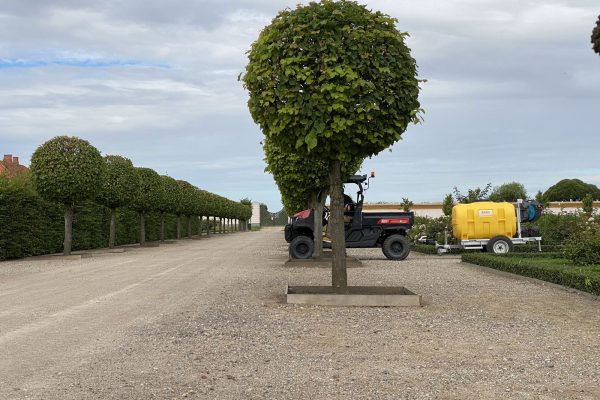

Foresteel-FTW-1000T-irrigation-trailer-Rundale-Palace-014

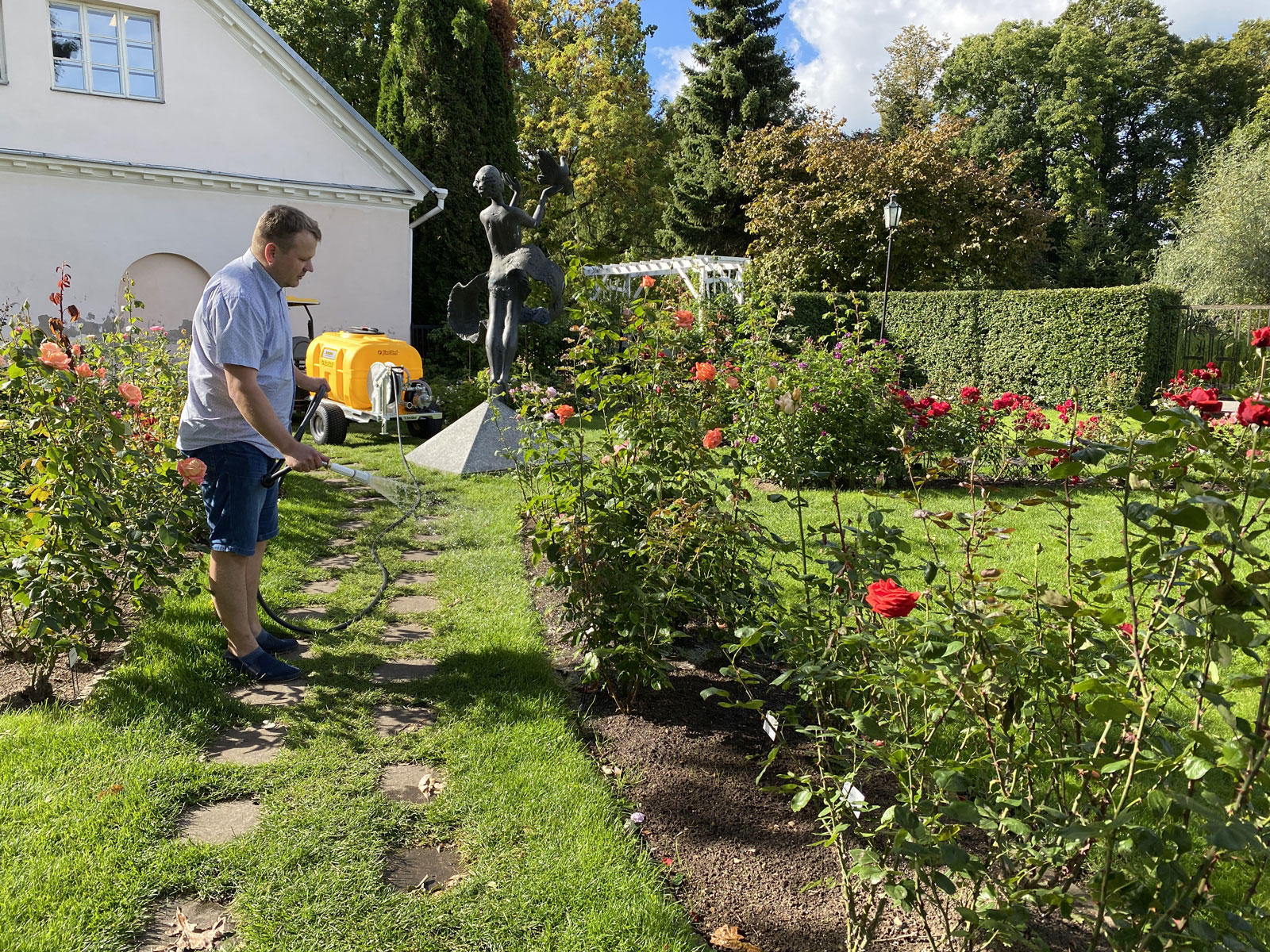

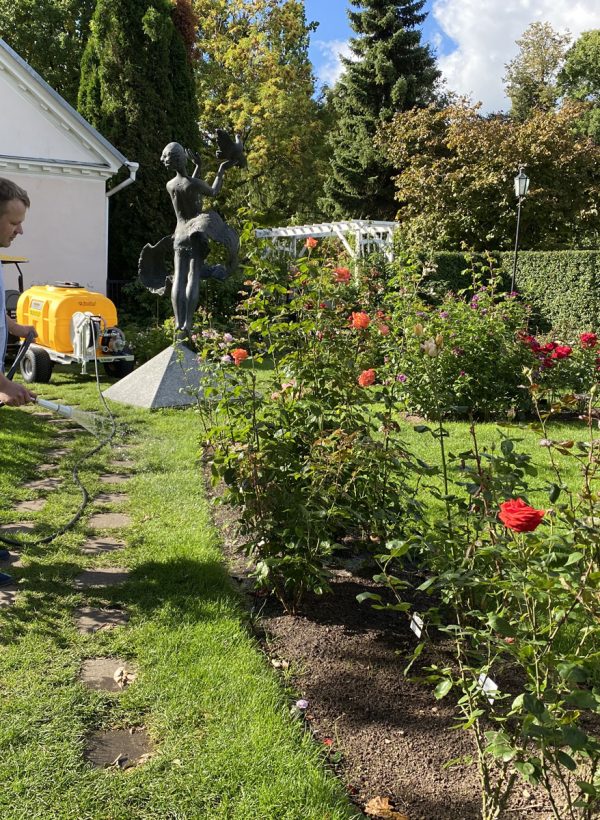

Foresteel-FTW-600T-water-trailer-600L-04

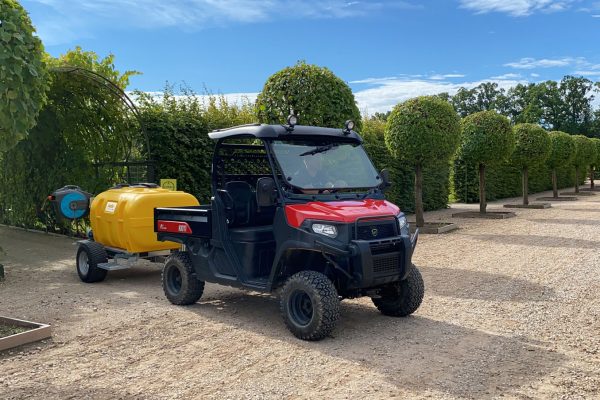

Foresteel-FTW-1000T-irrigation-trailer-Rundale-Palace-05

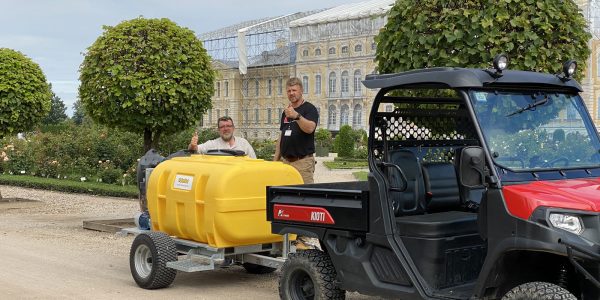

Foresteel-FTW-1000T-irrigation-trailer-Rundale-Palace-015

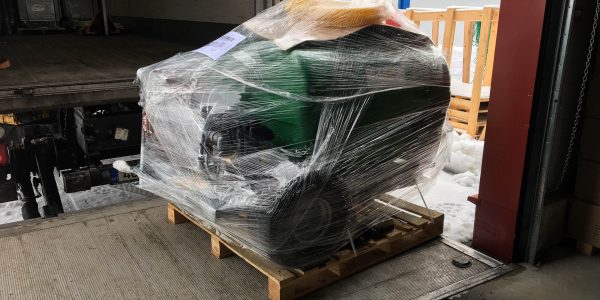

Foresteel-FTW-600T-semi-assmebled-transport-02
